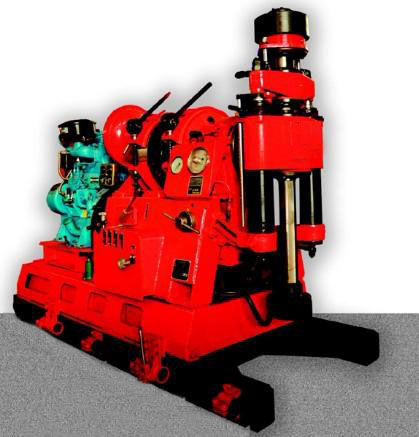

Considering the customer's requirement, the humanized CSS1000 Core Drill integrates characteristics of spindle-type drilling machine with outstanding quality, structure and performance. This machine played un-replaceable role in the area of geology, hydrology, metallurgy and coalfield exploration.
1. CSS1000 Core Drill is equipped with traditional spindle rotary unit, and suitable for small hole diamond drilling, as well as large hole drilling with alloy bits.
2. Being capable of vertical and inclined hole drilling.
3. Great clamping force of chucks, long service life of chuck jaws
4. One control handle can realize eight forward and reverse speeds conversion
5. Equipped with water brake lightening operator' s workload.
6. Duplicate gear oil pump to lower oil temperature with rational power utilization.
7. Oil-bathed clutch to enable smooth start, equipped with brake.
8. The sliding wheel on hoist has good sealing performance. The hoist has great hoist capability.
9.The whole drilling machine has reliable stability and disassembling easily.
Depth Capacity(m)
1000m
Drilling Rod (mm)
Φ 42 Φ 50 Φ 73 Φ89
Torque(kN m)
2.86
Drilling Angle
90°-65°
Spindie speed(r / mln)
Forward 155. 275. 375. 500. 610. 820. 1095
Reverse 80
Max Pulling Force(kN)
120
Feeding force(kN)
80
Feeding stroke(mm)
500
Max single line hoisting capacity(kN)
30
Lifting speed(m / s)
0 .78—2. 51
Steel wire(mm)
Φ15.5
Rope capacity(m)
100
Retracting Cylinder Stroke(mm)
360
Electric motor
30kW Y200L—4
Diesel engine
40HP2135G
Weight(t)
2.1t
Dimensions(LX W X H)(mm)
2480 X 1230x1920
Note: CSS1000Core. Drill is equipped with two types of spindle rotary, normal and large inner diameter, for customer to choose. The installation dimensions are same.
