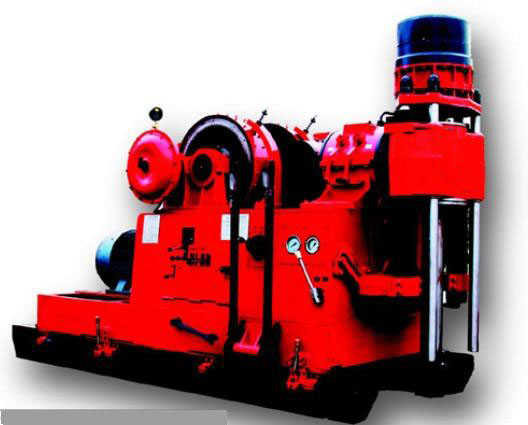

CSS08

Powerful output design, large spindle torque.

Large Inner diameter of spindle. Double feeding cylinders and long stoko

Great clamping 'orce of chuck.

Host in horizontal arrangement, high lifting capacity and convenient operations.

CSS08B

Powerful output design, large torque output or spindle and rotary-table.

Large inner diameter of spinde. Double feeding cylinders and long stoke

Big clamping force of chuck.

Hoist in horizontal arrangement, high lifting capacity and convenient operations

Additional rotary-table. more functions

CSS08

Drilling Depth ( m ) :

1000-3000

Drilling Rod ( mm ) :

⌽50.5、 ⌽60、⌽71、 ⌽73、⌽89、⌽114

Drilling Angle:

90,J-80°

Spindle Speed (r/min ) :

Forward 79、137、213、 223、366、384、 604、1024

Reverse 51、 144

Pulling Capacity ( kN ) :

300

Feeding Capacity ( kN ) :

142

Feeding Stroke ( mm ) :

1000

Max single-line Hoisting force ( kN )

130

Lifting Speed(m/s):

0.57-7.58

Steel wire ( mm ) :

⌽21.5

Rope Capacity ( m ) :

160

Skidding cylinder stroke ( mm) :

690

Motor Engine;

9CkW Y2280M-4

Diesel Engine;

132kW 6BTA5.9-C180

Weight(t):

7.8

Dimensions(L x W x H) (mm):

4G49 x 1754 x 2593

CSS08B

Drilling Depth ( m ) :

1000-3000

Drilling Rod ( mm ) :

⌽50.5、⌽60、⌽71、 ⌽73、 ⌽89、⌽114

Drilling Angle:

90°-80°

Spindle Speed (r/min ) :

Forward 79、 137、 213、223、266、 384、 604、1024

Reverse 51、144

Rotary Speed (r/min ) :

Forward 32、56、 87、 91、 150、 158、 244、 421

Reverse 21、 59

Pulling Capacity ( kN ) :

300

Feeding Capacity ( kN ) :

142

Feeding Stroke ( mm ) :

1000

Max single-line Hoisting force (kN )

130

Lifting Speed(m/s):

0.57-7.58

Steel wire ( mm ) :

⌽21.5

Rope Capacity ( m ) :

160

Skidding cylinder stroke ( mm) :

690

Motor Engine;

90KW Y2280M-4

Diesel Engine:

132KW 6BTA5.9-C180

Weight(t):

9

Dimensions(L x W x H) (mm):

4395 x 1754x2713
