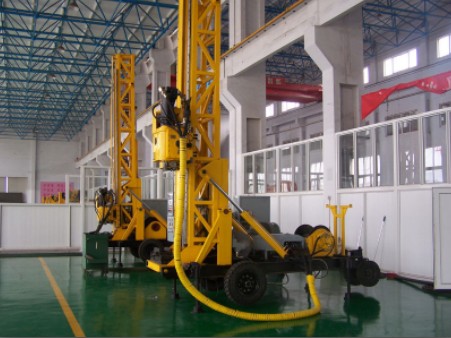

CSHD16 Diamond Core Drill, patented by the State Intellectual Property Office
(No.ZL200530136401.1),with great power and hydraulic rotary unit, is designed to perform
as an versatile base platform for core drilling, percussion drilling, reverse circulation drilling
and rotary drilling. It is also used for construction drilling, well drilling and anchor drilling.
The instrument could show the real time output power, rotary speed, in-hole pressure and
pump pressure, which is convenient for observing and recording the drilling conditions. It is
available that the optional trailer mounted for mobility.
Features：
1、Hydraulic transmission and control and high integration.
2、Long feed stroke to prevent the core clogging.
3、Great power and high torque, suiting for deep hole core drilling.
4、Hydraulic mast raising.
5、Independent operator platform and simple, manual and hydraulic controls for ease of service.
Drilling Capacity
Rod Diameters
Φ55.5
Φ71
Φ89
Depth
2500m
2000m
1300m
Rotator Capacity
RPM
0-850rpm
Hold Torque
4170N·m
Max Feeding Power
50kN
Max Lifting Power
180kN
Diameter of Chuck
94mm
Feed stroke
3500mm
Capacity of Main Hoist：Steel Wire Diameter：Φ20mm，Steel Wire Length：26 m
Hoisting Force
9500kg
Main hoist speed
8-43.5 m/min
Capacity of Steel Wire Hoist：Steel Wire Diameter：Φ5mm，Steel Wire Length：2500 m
