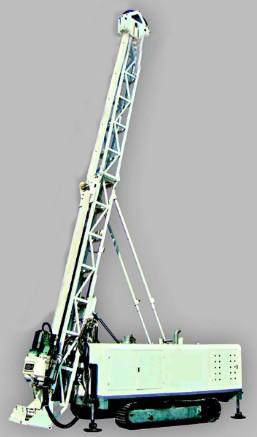

Drilling capacity(m)
|
|
Drilling depth(m)
|
BQ(55.6mm) NQ(69.9mm) HQ(88.9mm)
|
1800(m)
1500(m)
1000(m)
|
|
Diesel engine model
|
Cummins 6BTA5.9-C180
|
|
5.9L/6Cyindres
turbo pressurize water-air cooling
|
|
Power/rated speed
|
132kw/2200 r/min
|
|
Drive head
|
|
1 Step(rotation speed / torque)
|
0-388 r/min /3600-1800Nm
|
|
2 Step(rotation speed / torque)
|
0-1240 r/min /1100-550Nm
|
|
Main shaft diameter
|
Φ95mm
|
|
Speed regulation method
|
Variable regulation motor and last step gear transmission regulation
|
|
Hydraulic clamp
|
|
Structure
|
Spring clamp and hydraulic open
|
|
Clamping force
|
200kN
|
|
Jaw quantity
|
5( easy to dismantle and assemble )
|
|
Feeding system
|
|
Feeding stroke
|
3300mm
|
|
Feeding force
|
45kN
|
|
Drawing force
|
125kN
|
|
Backstay swivel angle
|
90-45degree
|
|
Stem length
|
3m x 2
|
|
Hydraulic system
|
|
Main pump flux / pressure
|
156L/min 28Mpa
|
|
Main Hoist
|
High speed
|
Low speed
|
|
Single rope force
|
83kN
|
128kN
|
|
Lifting speed
|
53m/min
|
34m/min
|
|
Rope capacity
|
45m( Φ 24mm steel wire)
|
|
Wire-line Hoist
|
|
First single rope lifting force
|
11kN
|
|
First rope speed
|
110m/min
|
|
Outmost rope speed
|
443m/min
|
|
Rope capacity
|
1800m( Φ 5mm steel wire)
|
|
Self-propelled Crawler
|
Speed
2-4km/h
|
Slope climbing
0°-20°
|
|
Leveling device
|
4hydraulic legs
|
|
Slurry pump
|
BW160/10 high pressure slurry pump
|
|
Overall weight
|
9t
|
|
Dimensions (L x W x H)
|
4100 x 2200 x 10360mm
|
|
Transport Dimensions(L x W x H)
|
5400 x 2200 x 2300mm
|
