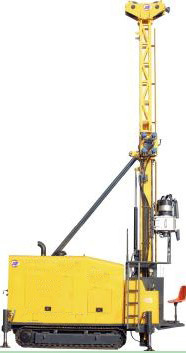

CSHD46 Hydraulic Core Drilling Rig，an up-to-date new product made by SUG Group Co., LTD, is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world. CSHD46 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
1.Main Features of the rig:
The rig, equipped with tracks, has a hydraulic driving system. It owns a brief but advanced structure, with its power head driven by a variable motor and its speed adjustable for 2 gears. With the oil cylinder working with a speed-changeable chain, its performance is stable and reliable. The mast is adjustable in the range from 0° to 90° to ensure a proper hole-drilling angle. The low gravity center of the rig promises a steady operation. And it provides the operators with a convenient and comfortable working circumstance with a wide view. In short, the rig has a beautiful outline and shows a people-oriented design idea.
1) Reliable Quality
The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.
2) High Efficiency
Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet) drilling rod guarantee the high operation efficiency of the rig.
3)Environmental Protection
The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which makes the rig proper to be operated in urban areas.
4) Energy Saving
The advanced technique of loading-sensor-controlling helps the rig reduce its consumption of driving force and heat discharge to the minimum extent. CSHD46 has an outstanding external appearance, a compacted structure, a reliable function, and a flexible operating system. All these factors have made the rig the best choice among the same products in both domestic and abroad markets.
2. Application Range
CSHD46 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
Diesel Engine
Model
Cummins 6CTA (turbocharged and cha rge water cooled)
Displacement
8.3L (2.19 US Gallons)
Power
178kW (240HP)
Rated RPM(Factory setting)
2200rpm
Drilling Capacity
BQ
2000 m(6560 feet)
NQ
1600 m(5248 feet)
HQ
1300 m(4264 feet)
PQ
1000 m(3280 feet)
Drill Head
Rotation Motor
Double Hydraulic Motor
-variableand Reversible
Maker:SAUER-DANFOSS
RPM
Two Shifts/Stepless Change 0-1100 RPM
Ratios
1st 8.776:1
2nd 2.716:1
Head Opener
sidewise sliding way with hydraulic drive
Hydraulic Chuck(PQ)
Hydraulically opened, Disc Spring
Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N
Max. Torque
6400 N·m(4717 Ibf·ft)
Hold Diameter
121 mm(4.76 inch)
Max. Lifting capacity of Spindle
220 kN(49456 Ibf)
Max. Feeding Power
110 kN (24728 Ibf)
Primary Pump
Hydraulic pump:
Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system.
