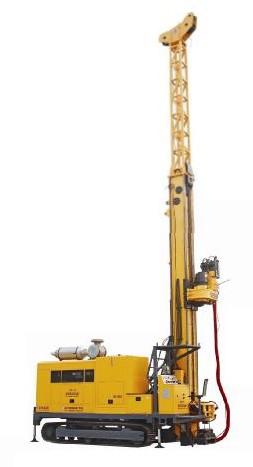

CSHD08 Hydraulic Core Drilling Rig, an up-to-date multifunctional product made by Germany SUG Co., LTD, is a thoroughly new-type hydraulic core drilling rig developed on the basis of the market demand and the advanced techniques in the world.
It is suitable to use in plains, hills, high temperature as well as low temperature places. The main machine is integrated in structure, which consists of self-propelled chassis, power, mud pump and hoist, etc.
It is wire-line coring, and at the same time has the unique top drive function. The maximum torque is 7200 Nm (5307 lbf ft), which will be much more suitable for large dia. drilling in coal bed methane, hydrology and water well.
According to many years of experience in HDD field, our engineers install clamp and shackle device on the rig to relieve labor intensity, improve drilling efficiency and guarantee operator's safety. CSHD08 is excellent in performance, high in working efficiency, easy for operation and can keep the operators from dangers.
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used
Power Unit
Power
276 kW (370HP) at 2100 r/min
Drilling Capacity
NQ
3000 m(9840 feet)
HQ
2400 m(7872 feet)
PQ
1700 m(5576 feet)
Drill Head
RPM of Spindle
Three Shifts/ Stepless ChangeThree 0-1250 RPM
Max. Torque of Spindle
7200 Nm(5307 Ibf·ft) at 170 rpm
1300 Nm(958 Ibf·ft) at 1250 rpm
Spindle Diameter
121 mm(4.76 inch)
Max. Lifting capacity of Spindle
295 KN(66316 Ibf)
Max. Feeding Power
152 kN (34170 Ibf)
Capacity of Main Hoist
Hoisting force (single wire)
120kN (26976 Ibf)
Steel Wire Diameter
21.5 rnm(0.85 inch)
Steel Wire Length
50 m( 164 feet)
Capacity of Wireline Hoist
Hoisting Force (single wire)
15 kN(3372 Ibf) (bare drum)
Steel Wire Diameter
6.3 mm(0.25 inch)
Steel Wire Length
2800 m(9184 feet)
Mast
Effective Hoisting Height
9.6 m( 31.5 feet)
Mast Adjusting Angle
0o—90o
Drilling Angle
45° off horizontal to 90°vertical down
Feeding Stroke
4700 mm(185 inch)
Slippage Stroke
1100 mm(43 incti)
Foot Clamp
Clamping Scope
55.5-117.5 mrn(2.19-4.63 inch) through hole Φ154mm(6.06 inch)
Mud Pump
Type
Reciprocating Pump Triplex Plunger
Model
BW320
Stroke
110mm(4.3 inch)
Output volume
320,230,165,118 L/min
(84.5,61, 44,31 US Gallons/min)
