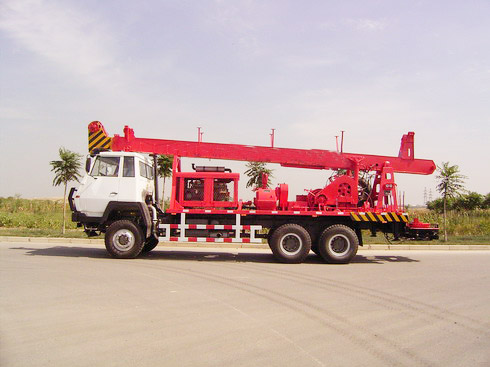

WS301TM product picture

WS301TM main features

WS301TM technical parameters

1.General
The water well drilling rig model WS301TM ( Fig.1), is a truck mounted rig , with all its components are mounted on the “STEYR” brand truck. The rig is mechanically driven with on part of its operating mechanism being hydraulic and the other part being mechanical.
In addition to the main operating made of rotary drilling by rotary table. For rotary drilling, mud is used as flushing fluid (positive cycle). Moreover, the two—arms drilling tool is equipped as air lifting reverse cycle; The shallow—bore hammer tool, air compressor and speed reducer of increasing rotary table are equipped as foam drilling, Auger tool is equipped as Auger drilling.
At the beginning of boring, pressuring mechanism may be used for drill tool to effect pressuring drilling, thus promoting the efficiency of shallow hole drilling. With the increased depth, when the weight of the drill tool is greater than the pressure required to apply to the drill tool, the main hoisting system should be used to carry out reduced—pressure drilling.
The drilling rig is provided with one main hoist and tow secondary hoists.
The main hoist is used for lifting or lowering of the drill tool, lowering of the well pipe, reduced-pressure drilling and percussive drilling.
One of the secondary hoists is used for driving percussive earth excavator or other coring tool and sand reel to extract sand sample or core and silt in the well. The other secondary hoist is used for elevating the movable table.
The drilling rig are equipped four jacks to reduce physical labour and improve install efficiency.
The drilling rig isn’t used the truck engine. It is separately equipped diesel engine (The buyer can choose model 6135AN or F6L912 or BF6L913 etc diesel engine).
Notation of the drilling rig :S P C – 300 ST
S---water well hydrogeological
P---rotary table
C---truck mounted
300---drilling depth
ST--- mounted on STEYR
2.Main Characteristics And Applications
This drilling rig features in best maneuver ability, compact construction, high integrity, economical transportation, and simple operation, Reliable transmission, high versatility and efficiency. After loosening the first turn of thread of the lock joint with the aid of breakout-gun cylinder, the drill pipe can be rotated in clockwise or counter-clockwise direction by the rotary table to reduce greatly the labour intensity and prolong service life of the component parts.
In order to improve efficiency of drilling, This drilling rig is equipped with related drilling tool that can be applied various advanced drilling technology.
The drilling rig may be used for drilling in quaternary period stratum and matrix water well. Rotary drilling can be made right with a depth of 300m. And bore diameter of 500mm.

A.Base data
Drilling depth. 200-300m

Diameter of bore hole              500mm
Max. through hole diameter     505mm
Drill pipe
Driving Kelly                                108mm*108mm*7500mm
In-hole drill pope                         89mm*6000mm
Mast
Height                                         11m
Max. load                                     15t
Front inclination (rotary drilling)                3°
(percussive drilling)                                   1.75°
weight of percussive drill tool      800-1000kg
Physical dimensions(L*W*H)                  10880mm*2500mm*4100mm
Total weight                                           21t
B. Power (diesel engine)
1.model:                BF6L913               F6L912                           6135AN
2.description:        air-cooling            air-cooling, direct            water cooling
                              Direct injection     injection diesel engine    diesel engine
                              Supercharged
                              diesel engine
3.liner size and stroke: 102*125mm      100*120mm               135*150mm
4.Power/run:   104/2300(kW/rpm)          74/2300(kW/rpm)      100/1500(kW/rpm)
5.Max torque/run:   490/1650(N.m/rpm) 345/1600(N.m/rpm)   647/1250(N.m/rpm)
C. Main parameters
1.   out put speed of rotary table
BF6L913?F6L912 diesel engine power

Description	Clockwise(RPM)			Counter-clockwise(RPM)
Gear shift	1	2	3	Counter-clockwise(RPM)
WS301TM Rotation speed(RPM)	52	78	123	40

2. Hoist
Max. Capacity(1 speed, single rope):
Main hoist                                            30kN
Sand reel hoist                                    20kN
Tool hoist                                             20kN
Diameter of drum:
Main hoist                                            273mm
Sand reel hoist                                    268mm
Tool hoist                                             268mm
Rotation speed and hoisting speed for single rope (Based on 2nd layer rope)

Description	Main hoist			sand rell hoist			Tool hoist
Gear shift	1	2	3	1	2	3	1	2	3
Rotation speed (rpm)	43	85	122	21.5	42.5	61	21.5	42.5	61

Diameter of steel     15.5          15.5       9.3
rope (mm)
Hoisting speed (m/s) 0.716   1.42    2.04    0.353    0.698   1.00   0.332   0.658    0.945
Length of steel ropes (all are standard GB-1102-74)
For main hoist of rotary drilling           (15.5)     120m
For tool hoist                                       (9.3)      120m

3. Guide pressuring mechanism
Max. pressure applied                          2000kg
Pressuring travel                                  1000mm
Diameter of guide rod                           50mm
Diameter of wire rope for pressuring    9.3mm
4.Chassis
Model:“STEYR”truck                           ZZ2252M4651
Axle spacing                                         4.6m+1.35m
wheel track 1.8m
Angle of break:
Angle of approach                                  33°
Angle of departure                                 19°
Number of tires              front 2              rear8
Size of tire                                             12.00-20
Speed of truck               limited speed    50Km.h

5.Hydraulic breakout gun mechanism (For loosening the first turn of the drill tool)
Travel                                                      185mm
Bore diameter of oil cylinder                    110mm
Torque for pipe dismantling
Rated (oil pressure of hydraulic system 6.86Mpa)      26.2kN.m
Max.( max oil pressure of hydraulic system 9.8Mpa)   40.2kN.m

6.Hydraulic oil pump
Model                          CB-32 gear pump (counterclockwise)
Displacement                                         32.6ml/rev
Rotation speed                                     1100-1625rpm
Rated pressure                                      9.8Mpa
Volumetric efficiency                               0.9
Power required (at 1500rpm)                12.1Hp
Net weight                                             6.7kg

7.Mud pump
Model                               BW900/25              BW600/30(optional)
Max pressure                   2.5Mpa                   2.94 Mpa
Max displacement            1030L/min              600 L/min
Power required                 52HP                     52 HP
Internal diameter of intake pipe 102mm        102mm
Internal diameter of discharge pipe 64mm     64mm
