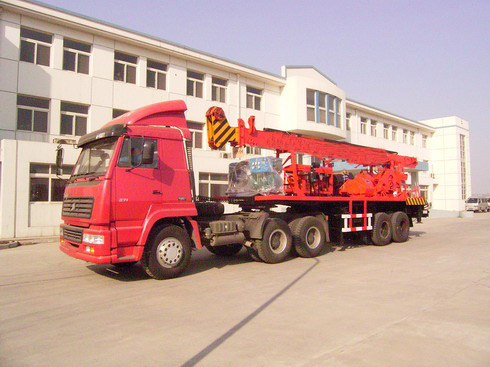

WS300TRM product picture
WS300TRM main features
WS300TRM technical parameters
1. General
The water well drilling rig model WS300TRM ( Fig.1), is a trailer mounted rig for rotary drilling, with all its components are mounted on the trailer . The rig is mechanically driven with on part of its operating mechanism being hydraulic and the other part being mechanical.
In addition to the main operating made of rotary drilling by rotary table.. For rotary drilling, mud is used as flushing fluid (positive cycle). Moreover, the two—arms drilling tool is equipped as air lifting reverse cycle; The shallow—bore hammer tool, air compressor and speed reducer of increasing rotary table are equipped as foam drilling, Auger tool is equipped as Auger drilling.
At the beginning of boring, pressuring mechanism may be used for drill tool to effect pressuring drilling, thus promoting the efficiency of shallow hole drilling. With the increased depth, when the weight of the drill tool is greater than the pressure required to apply to the drill tool, the main hoisting system should be used to carry out reduced—pressure drilling.
The drilling rig is provided with one main hoist and tow secondary hoists.
The main hoist is used for lifting or lowering of the drill tool, lowering of the well pipe, reduced-pressure drilling and percussive drilling.
One of the secondary hoists is used for driving percussive earth excavator or other coring tool and sand reel to extract sand sample or core and silt in the well. The other secondary hoist is used for elevating the movable table.
The drilling rig are equipped four jacks to reduce physical labour and improve install efficiency.
The drilling rig isn’t used the truck engine. It is separately equipped diesel engine (The buyer can choose model 6135AN or F6L912 or BF6L913 etc diesel engine).
2. Main Characteristics and Applications
This drilling rig features in best maneuver ability, compact construction, high.
integrity, economical transportation, and simple operation, Reliable transmission, high versatility and efficiency. After loosening the first turn of thread of the lock joint with the aid of breakout-gun cylinder, the drill pipe can be rotated in clockwise or counter-clockwise direction by the rotary table to reduce greatly the labour intensity and prolong service life of the component parts.
In order to improve efficiency of drilling, This drilling rig is equipped with related drilling tool that can be applied various advanced drilling technology.
The drilling rig may be used for drilling in quaternary period stratum and matrix water well. Rotary drilling can be made right with a depth of 300m. And bore diameter of 500mm.
1.Base data
Drilling depth. 200-300m
Diameter of bore hole
Rotary drilling 500mm
Max. through hole diameter
Of rotary table 505mm
Drill pipe
Driving Kelly 108×108×7500mm
In-hole drill pope 89mm*6000mm
Mast
Height 11m
Max. load 15t
Front inclination (rotary drilling) 3°
Physical dimensions(L*W*H) 11350×2500×3900mm
Total weight 14t
2.Power (diesel engine)
a.model: BF6L913 F6L912 6135AN
b.description: air-cooling air-cooling, direct water cooling Direct injection injection diesel engine diesel engine Supercharged diesel engine
c.liner size and stroke: 102*125mm 100*120mm 135*150mm
d.Power/run: 104/2300(kW/rpm) 74/2300(kW/rpm) 100/1500(kW/rpm)
e.Max torque/run: 490/1650(N.m/rpm) 345/1600(N.m/rpm) 647/1250(N.m/rpm)
3.Main parameters
a. out put speed of rotary table
BF6L913?F6L912 diesel engine power
Description
Clockwise(RPM)
Counter-clockwise(RPM)
Gear shift
1
2
3
SPC-300S Rotation speed(RPM)
52
78
123
40
b. Hoist
Max. Capacity(1 speed, single rope):
Main hoist 30kN
Sand reel hoist 20kN
Tool hoist 20kN
Diameter of drum:
Main hoist 273mm
Sand reel hoist 268mm
Tool hoist 268mm
Rotation speed and hoisting speed for single rope
(Based on 2nd layer rope)
Description
Main hoist
sand rell hoist
Tool hoist
Gear shift
1
2
3
1
2
3
1
2
3
Rotation speed (rpm)
43
85
122
21.5
42.5
61
21.5
42.5
61
Diameter of steel 15.5 15.5 9.3
rope (mm)
Hoisting speed (m/s) 0.716 1.42 2.04 0.353 0.698
1.00 0.332 0.658 0.945
Length of steel ropes (all are standard GB-1102-74)
main hoist of rotary drilling (15.5) 120m
secondary hoist (21.5) 125m
For tool hoist (9.3) 120m
c. Guide pressuring mechanism
Max. pressure applied 2000kg
Pressuring travel 1000mm
Diameter of guide rod 50mm
Diameter of wire rope for pressuring 9.3mm
d.Hydraulic breakout gun mechanism (For loosening the first turn of the drill tool)
Travel 185mm
Bore diameter of oil cylinder 110mm
Torque for pipe dismantling
Rated (oil pressure of hydraulic system 6.86Mpa) 26.2kN.m
Max.( max oil pressure of hydraulic system 9.8Mpa) 40.2kN.m
e.Hydraulic oil pump
Model CB-32 gear pump (counterclockwise)
Displacement 32.6ml/rev
Rotation speed 1100-1625rpm
Rated pressure 9.8Mpa
Volumetric efficiency 0.9
Power required (at 1500rpm) 12.1Hp
Net weight 6.7kg
f.Mud pump
Model BW900/25 BW600/30(optional)
Max pressure 2.5Mpa 2.94 Mpa
Max displacement 1030L/min 600 L/min
Power required 52HP 52 HP
Internal diameter of intake pipe f102mm 102mm
Internal diameter of discharge pipe f64mm 64mm
