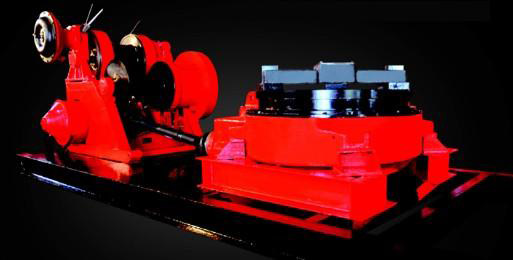

WS600G Water Well Drilling Rig is a rotary table drilling machine with mechanical transmission and mainly used to drill and explore water well within 600 meters.

It's applicable to clay sand, gravel and bedrock formations.

It features large output torque, great hoisting capability, as well as wide rotation speed range.

WS600G is equipped with main hoist, secondary hoist A-type or tetragonal drill tower.

The drilling machine is bulk style and easy to disassembling and transportation.

Drill Depth(m): 600

Throughout Dia. of Rotary Table(mm): Φ605

Kelly Bar(mm): 108 x 108 x 8000    108 x 108 x 12000

Drilling Rod(mm): Φ73   Φ89

Rotation Speed of Rotary Table(kN. m): 42, 75, 134

Main Hoist:

Hoisting Capacity of Single Rope(kN): 35

Rated Load of Big Hook(kN): 210

Hoisting Speed of Big Hook(m/s): 0.15—0.47

Pulley Block Type: 3 x 3

Steel Wire Diameter: Φ20—21.5

Secondary Hoist:

Rated Capacity of Single Rope(kN): 15

Max. Hoisting of single Rope(kN): 20

Permissive Hoisting Speed of Single Rope(m / s): 0.58

Steel Wire Diameter(mm): Φ 9.8

Power(kW): 37

Main body weight(t): 5.5
