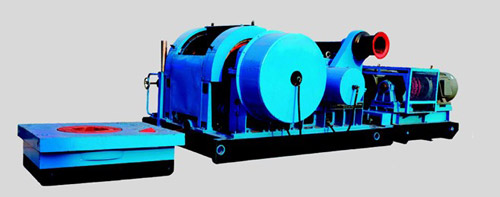

Drilling Rod(mm): Φ89 Φ127
|
|
Drilling Capacity(m): 2200～3200
|
|
Rotary-table: ZPI75
|
Rated Power: 272t
|
|
Max Rotary Speed: 350r/min
|
Opening Dia.: Φ445mm(l7 )
|
|
Transmission Ratio 3.75Forwards and Reverse Speed: 33, 58, 75, 132r/min
|
|
Rated Max Torque of Rotary-table:: 40kN.m
|
|
Air tube clutch lifting and double contracting brakes braking.
|
|
Hoist capability of single(second floor): 130kN
|
|
Rope Capacity(6 floors): 350m
|
|
Single line lifting force and speed
|
|
Speed
|
I
|
II
|
III
|
IV
|
|
Drum Rotation(r / min)
|
52.8
|
92.8
|
120
|
211
|
|
Single lifting Force(kN)
|
130
|
74
|
57
|
33
|
|
Lifting Speed(m/s)
|
1.377
|
2.42
|
3.13
|
5.51
|
|
Big hook Type: 5x6 pulley block
|
|
Lifting speed and Force of Big Hook
|
|
Speed
|
I
|
II
|
III
|
IV
|
|
Lifting Force(kN)
|
1300
|
747
|
573
|
326
|
|
Lifting Speed(m/s)
|
0.138
|
0.24
|
0.313
|
0.55
|
|
Cathead: Double-Cathead
|
Cathead Dia.: Φ 300mm
|
|
Rotation Speed Of Cathead Wheel: 70 123 159 280r/min
|
|
Power Units:
|
|
single 110kW/1480r/min two 220kW / 1480r / min
|
|
Dimensions: 8410mm x 3075mm x 1880mm
|
|
Weight of Main Machine: 191
|
Overall Weight: 22.5t
|
|
|
|
Major matched equipment:
|
|
Quadrangle or A-type derricks, Nominal height 31m
|
|
Max net load of crane: 1350kN
|
|
Drilling Floor: Nominal Height 2.2m
|
|
Mud Pipes: Rated Pressure 10MPa, Inner Dia. Φ 75mm
|
|
Travelling Block: Rated Load 1250kN, 5X6 Pulley Block
|
|
Swivel : Rated Load 1250kN, lnner Dia. Φ 75ram
|
|
Elevator link, elevator clamp, elevator bail, chuck jaws and other drilling tools.
|
|
Kelly Bar: 108 x 108 x 13600 133 x 133 x 13600
|
|
Air Compressor: 1m3/min 1MPa
|
|
Two units air compressors suggested, one as auxiliary.
|
|
accessory: for the installation of the main machine and drill floor.
|
|
Control Cabinet
|
