1、 Application：

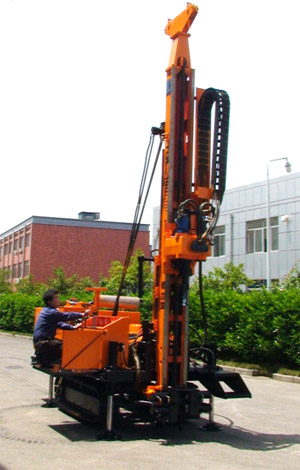

　　 GS100C drilling rig is one kind of full hydraulic power head (top drive) crawler drilling rig. It is mainly applied in drilling work of Geothermal hole, and also used in drilling the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering such as the side slope of dam construction, railways, highways, etc.; the guiding hole of high pressure jet grouting in gravel area; the blast hole; the anchoring hole of high buildings deep basement foundation; the anti-floating anchoring hole; the foundational reinforcing hole of interior architecture; the grouting reinforcing hole; the reinforcinghole of road or dam foundation; and the anchoring hole of landslide preventing.
2、 Features:
1. The great rotary torque and long feeding stroke distance of the drilling rig make the speed of borehole faster, the disposal capability of accident better and efficiency of drilling work higher.
2. Extension mechanism (Chinese patent number: ZL03222451.6) in the output spindle of top drive power head protects drilling tools effectively.
3. The gearshift mechanism of top drive power head adopts the hydraulic shift method which has the strongpoint of the quickness, convenience, reliability, etc. of the gearshift.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
5. The equipment is mounted on the track chassis with the turning platform mechanism which makes the moving and walking more and more convenient.
6. The principal hydraulic elements are all selected from import or home well famous products that make the machine have a stable, reliable and durable performance.
7. The drilling rig is suitable for a variety of drill technique and methods, such as the rotary drill, auger drill, air drive DTH hammer impact and so on.
8. The rig can be installed with a rod lifting device (optional) to join drill rods.

1） Hole Depth:  150~80 m
2） Hole Diameter:  Φ130~250 m
3） Drill Rod Standard:  Φ89×3000 mm; Φ127×3000 mm
4） Power Head Rotary Speed (forward / reverse):  40/80
5） Power Head Max Output Torque:  6000 Nm
6） Power Head Feeding Stroke:  3500 mm
7） Max. Power Head Lifting Capability:  55 kN
8） Max. Power Head Thrust Force:  40 kN
9） Mast Sliding Compensating Stroke:  500 mm
10） Turning Range of Platform:  360°
11） Climbing Ability:  20°
12） Engine Power (Either One)
　　 Electromotor:  37 kW
　　 Diesel:  71 kW
13） Overall Dimension (Reduce Type):  About 5800×2200×2300mm
14） Total Weight:   About 5000kg
15）Optional Equipments:
　　a） 1.1 ton tool winch (with crown pulley)
　　b） BW-250 Mud pump
　　c） Wet method dust cleaner device
　　d） Rod lifting device
　　e） high speed for speed powerhead:180rph
