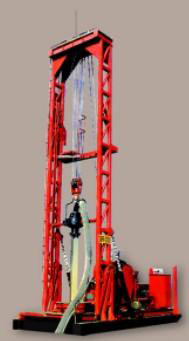

This drill is a rotary table style engineering drilling equipment.
It can be used for direct and reverse circulation drilling.
It is used for pile hole drilling for the construction of bridge, harbor, high building, water engineering and electricity transmission facilities.

Main Features:
1. High torque output, suitable for big hole drilling.
2. The main part is installed on skid-type frame, easy to align and locate.
3. The whole machine can be moved forwards and backwords by the hydraulic control unit to make hole mouth available for operation. It is convenient to pull up and down Φ1.6M to Φ2M big size drilling tools.
4. Easy to realize conversion of direct and reverse circulation drilling process. High efficient to discharge residues.

Depth Capacity(m)

50-100m

Drilling diameter(m)

Φ1.2 — Φ2.2

Rotary-table torque(kN)

30

Lifting capacity(kN)

210

Height of derricks(m)

8.5

Kelly Bar(mm)

200 x 200 x 3750

Drilling rod(mm)

Φ180 x Φ162x3000

Lifting capacity of single sling of winch(kN)

30(385r/h)

Outside dimension(L x W x H)

5800 x 2920 x 8870

Total weight

11 t
