ES150HDTPC Drilling Rig has been widely used in pipe sheds drilling of the tunnel construction; grouting reinforcing hole drilling; but also the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering, such as boreholes on side slopes of dams, railways, highways, etc; GSHPs hole and water well or water exploration hole.; and the drilling holes of landside preventing and the treatment engineering of rock collapse.
Main Features:
1、It has adopted top hydraulic rotary power head impact which is Germany imported, multi-angle drilling, and excellence performance.
2、The speed of borehole is faster than traditional machine.
3、It has no dull pollution and no need air-compressor when drill the incompact ground area, the gravel place and fragment rock stratum.
4、Special tube drilling technical. It can drilling fast and insure project firmly.
5、In complex condition, it can use double tube rotating drilling, in order to make hole stable and easy to slip casting.
6、The drilling rig can be applied for different technique methods and a variety of ground conditions. Especially in the difficult work condition, such as the incompact ground area, the gravel place, and the fragment rock stratum, this drilling can always provide the operator excellent solutions.

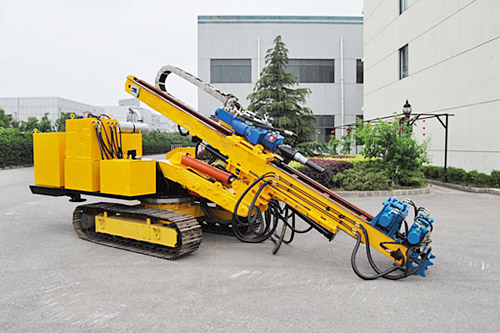

Hydraulic Crawler Drilling Rig
ES150HDTPC
Total Weight
kg
7500
Length*Width*Height（Work Type）
mm
6100×2100×2350
Environmental Temperature
°C
-10～38
Nominal Borehole Depth
m
150～80
Borehole Diameter
mm
130～250
Hole Angle Range
°C
-90～15
Horizontal Drilling Range
mm
2050～3050
Impact on top of head configuration
(Germany imported)
normal
Rotary speed
Output SpeedⅠ
rpm
32
60
Output TorqueⅠ
N.m
9000
7500
Output SpeedⅡ
rpm
64
120
Output TorqueⅡ
N.m
4500
3500
Impact Hammer
Impact
N.m
400
Impact Frequency
Min-1
1800
Power Head
Feeding Stroke
mm
3500
Thrust Force
kN
45
Lifting Capacity
kN
60
Mast
Slide Stroke
mm
400
Swing angle of the mast
°
-30～90 or -90～30
Power Type
Cummins diesel engine
Power
kW
75
Rotate speed
rpm
2000
Fuel capacity
L
150
Crawler Chassis
PD135
Width of crawler chassis
mm
400
Ground pressure
MPa
＜0.05
Turning Range Of Platform
°
-30～右90 or -90～30
Climbing Ability
°
≤20
**The company reserves the right to change the data and literature in this brochure without notice.
Vertical working condition Germany imported top hydraulic
rotary power head impact
