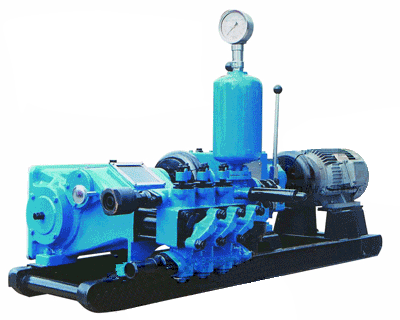

Type: Horizontal, triplex, reciprocating, single acting piston pump
Stroke: 70mm
Bore: 70mm
Pump speed (s.p.m): 222, 130, 86, 57, 183, 107, 71, 47
Output volume (l.p.m): 150, 90, 58, 38, 125, 72, 47, 32
Discharge pressure (Mpa): 1.8, 3.2, 4.8, 7.0, 2.3, 4.0, 6.0, 7.0
Volumetric efficiency: 85%
Input power (Kw): 7.5
Suction pipe dia. (mm): 50
Discharge pipe dia (mm): 32
Drilling hole depth (m): Diamond core drilling < 1500
Overall dimensions (mm): 1840*795*995
Weight (kg): 516(with motor)
|
