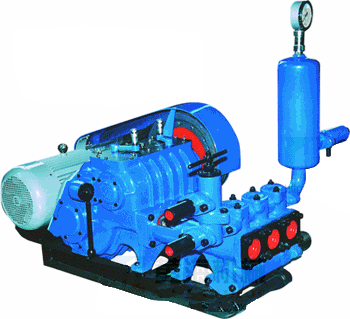

| MS250S product picture |
MS250S technical parameters |
|
MS250S MUD PUMP
|
|
Type
|
Horizontal, triplex, reciprocating, single acting piston pump
|
|
Stroke
|
100mm
|
|
Bore
|
80mm
|
65mm
|
|
Pump speed (s.p.m)
|
200 116 72 42
|
200 116 72 42
|
|
Output volume (l.p.m)
|
250 145 90 52
|
116 96 60 35
|
|
Discharge pressure (Mpa)
|
2.5 4.5 6.0 6.0
|
4.0 6.0 7.0 7.0
|
|
Volumetric efficiency
|
85%
|
|
Mechanical efficiency
|
85%
|
|
Total efficiency
|
70%
|
|
Input power/speed (kw/r.p.m)
|
15/1500
|
|
Multiple grooved pulley D.P (mm)
|
410(B groove*5)
|
|
Input speed of pump (r.p.m)
|
500
|
|
Max. suction head (m)
|
2.5
|
|
Inside diameter of suction hose (mm)
|
76
|
|
Inside diameter of discharge (mm)
|
51
|
|
Overall dimensions (mm)
|
1100*995*650
|
|
Weight (kg)
|
500(without power)
|
|
|
|
|
|
