Applications

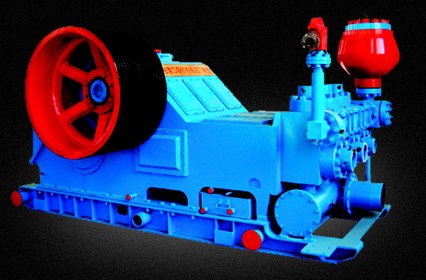

MS1300S Slurry Pump is a horizontal triplex single acting reciprocating pump. lt features resonable structure, reliable operation, easy maintenance. It can meet the requirements for 2500—3500 meters drilling with high-pressure jet drilling method. MS1300S Pump is manufactured according to Oil Industry Standard SY5138.
Main Features
1. The pump consists of two main parts: mechanical transmission part and pump body.
2. Air pressure tank and shear pin type relief valve are separately connected on two sides of outlet pipes in order to decrease the pressure fluctuations and prevent superhigh pressure on the outlet side.
3. Splashing oil and pumping oil provide good lubrication for the mechanical transmission part, gears, bearings, crosshead and others.
4. Centrifugal spray pump provide lubricant to clear lubricate and cool the sleeves and pistons of pump body.
5. Special tools are provided for repairing and maintenance.
|
