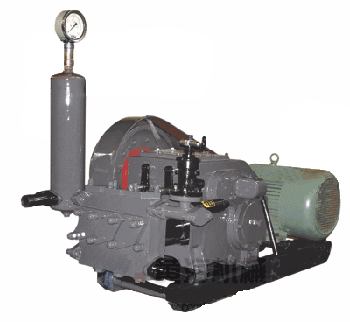

| MS160S product picture |
MS160S technical parameters |
|
MS160S MUD PUMP
|
|
Type
|
Horizontal, triplex, single acting reciprocation piston pump
|
|
Stroke
|
70mm
|
|
Bore
|
70mm
|
|
Pump speed (s.p.m)
|
200 132 83 55
|
|
Output volume (l.p.m)
|
160 107 67 44
|
|
Discharge pressure (Mpa)
|
2.5 4 6.5 10
|
|
Volumetric efficiency(%)
|
95
|
|
Overall efficiency(%)
|
75
|
|
Suction pipe dia (mm)
|
51
|
|
Discharge pipe dia (mm)
|
32
|
|
Power of dynamic force (kw)
|
11 (motor) 13.24(diesel engine)
|
|
Rotate speed of dynamic force (r/min)
|
1460(motor) 2200(diesel engine)
|
|
Dimension (mm)
|
1400*850*950
|
|
Weight (Kg)
|
380
|
|
|
|
|
|
