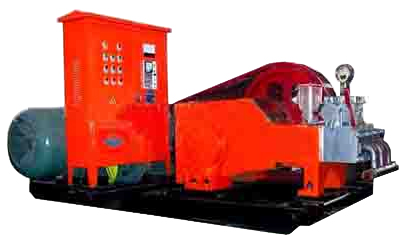

High-pressure grout pump is made in order to fit the progressively developing technology of high-pressure grout. It is a light-duty, high-pressure and constant displacement pump. It can feed the water and high-density grout.
The high-pressure grout pump can be applied to the field as follows:
1. The soft foundation, the high-pressure revolve with spray to pour grout;
2. Break the rock and decline the coal by the high-pressure water;
3. Provide the liquid to the liquid-pressure pillar in the coalmine;
4. Feed high-pressure water by the metallic anchor rod pump that is used for anchoring;
5. Clean the great pipe underground;
6. The chemical pump;
7. Drill holes flatly by high-pressure water;
8. The high-pressure grout pump that is used for else purpose.
Function pattern: horizontal reciprocating single-acting plunger
Inputs rotate speed: 600-1340 r/min
Stroke of plunger: 120 mm
Transmission ratio: i = 7.2545
Diameter of suction pipe: 50.8 mm
Diameter of eject pipe (mm):Φ19
Diameter of plunger: (mm):Φ50
Output flux: 96 L/min
Work pressure: 40 MPa
Normal rated power: 90 kW
Dimensions (mm): 3000×1800×1600
Total weight: 3800 kg
Remark: Technical specifications are subject to change without prior notice and incurring responsibility for machines previously sold. The shown machines may have optional equipment. Technical data do not consider power losses.
