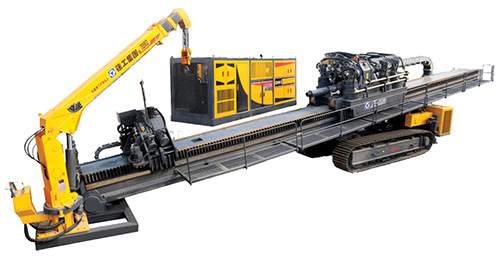

The XZ5000 horizontal directional drilling rig with the Self-propelled chassis adopts various advanced control technologies such as the energy saving hydraulic system, electro-hydraulic proportional control and load sensing control as well as the proprietary technologies of the company. Its main performance parameters and control technologies have reached the domestic advanced level. The main components of hydraulic system、electric system and transmission system are of top-grade domestic and international brand, and high reliability.

Technical Characteristics:
* This rig is equipped with originally imported VOLVO EFI engine and its fuel consumption rate is low. The power of these twin-engine is up to 788kw. It can enable drilling rig to complete pipeline laying under various complicated geological conditions. Single engine is capable of finishing all actions of the whole machine.
* Hydraulic system: closed energy saving circuit, load sensitive control, electro-hydraulic proportion control. Many main imported components can ensure reliable quality.
* Self-propelled crawler chassis has high traffic ability. It is convenient for transportation transition.
* Hydraulic system is equipped with high pressure filter with mass flow & high precision to ensure long service life of drilling rig.
* Push-pull: rack & pinion for push-pulling, stepless speed regulating with multiple gears, high working efficiency.
* Drill stand: welded by high-strength steel and is fit for drill rods of different length. It is push-pulled by hydro-cylinder and convenient to adjust angle for construction.
* Vehicle-mounted crane of 5T is optional, convenient for operation.
* Vise is fixed with camera. That can make operator get a good vision when dismounting the drill rod. Convenient for operation.
* Slurry recovery device is provided. Keep the site tidy.
* Rotation and push-pull adopt digital remote pressure adjustment technology that make it convenient and efficient for pressure setting and adjustment.
* You can select the top-grade operating room with air conditioner (heat and cool) for comfortable.

Main Technical Specification

Model

XZ5000

Engine

VOLVO

Rated power

kw

2×394

Push-pull

Rack and pinion

Max. pullback/thrusting

kn

5000/5000

Spindle torque (max.)

n.m

160000

Spindle speed

r/min

0-90

Travelling speed of power head

m/min

0-28

Backreamering diameter

mm

Ф2000

Pipe length (single)

m

9.6

Pipe diameter

mm

Ф169/Ф194

Entry angle

°

8-16

Mud flow rate (max.)

L/min

3000

Mud pressure (max.)

bar

200

Overall weight

T

55000

Dimension (L×W×H)

mm

18500×2500×3600
