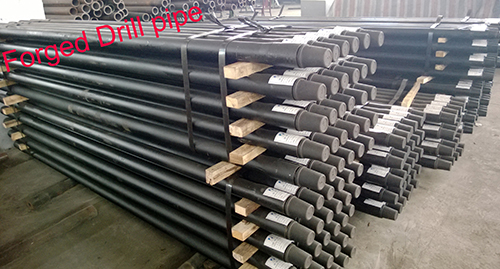

| S.U.G drill pipe product picture |
S.U.G drill pipe technical parameters |
| Specification |
Dimension of th drill pipe |
Grade |
Min. bending
radius
(m)
|
Length of pipe
to bend 90°
(m)
|
Max. angle
(°s)
|
Max. slope
of pipe
% |
Torque
(Kn.m)
|
OD of tube
(mm) |
Thickness
of tube
(mm) |
Length
(m)
|
Weight
(kg) |
OD of joints
(mm) |
Big clamp
space of
pin joint
and box joint
(mm) |
| 50(2") |
50 |
6.5 |
2 |
20 |
57 |
Pin:110 |
S |
30 |
47.1 |
4.8 |
8.3 |
3 |
| 2.5 |
25 |
Box:175 |
| 60.3(2 3/8") |
60.3 |
7.5 |
3 |
35 |
67 |
Pin:130
Box:180 |
S |
33 |
51.8 |
5.2 |
9.1 |
6.3 |
| 73(2 7/8") |
73 |
8 |
3 |
45 |
80 |
Pin:120 |
S |
45 |
70.7 |
3.8 |
5 |
13 |
| 4 |
58 |
Box:180 |
| 73(2 7/8") |
73 |
10 |
3 |
58 |
87 |
Pin:120 |
S |
51 |
80 |
4.5 |
7.8 |
16 |
| 4 |
78 |
Box:180 |
| 83(3 1/4") |
83 |
9.19 |
3 |
55 |
92 |
Pin:130 |
S |
65 |
102.1 |
4 |
6.9 |
18 |
| 4.5 |
75 |
Box:190 |
| 89(3 1/2") |
88.9 |
10 |
4.5 |
97 |
104.8 |
Pin:150 |
S |
72 |
113 |
4.8 |
8.3 |
24 |
| 6 |
126 |
Box:230 |
| Remark: thread and length can be produced by customer's requirements. |
|
|
|
|
|
