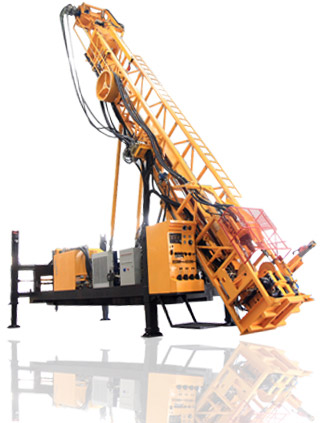

MS1000M is designed for multi-purpose drilling, and is a high capacity, heavy duty multi purpose drill rig which is highly effective in diamond coring, reverse circulation and rotary drilling techniques.
 Air hammer drilling techniques   Axial pressure works against the up ward force when the air hammer pushes down the pistons, ensuring the drilling force efficiently passing through the pipe to the bit. When using air hammer drilling, the speed is 15-30 rpm.

The features below defines the performance of RC drilling,
1. high drilling efficiency
2. Adopted to complicated ground stratum
3. Quality hole formation
4. Simple drilling technique
5. lower cost
6. Less contaminated samples

 Combination of core drilling and RC drilling
    The drilling depth of most the present RC drill is up to 400 meters due to using heavy double-wall drilling pipes, MS1000M is perfectly designed by combination of core drilling and RC drilling, RC drilling for shallow drilling and quality control, and core drilling for deep drilling and long term reserve estimation.

1. Drilling Capacity RC 320m(4.5"), 400m(4")
   BQ 2,000m
   NQ 1,500m
   HQ 1,000m
   PQ 750m

2. Engine Cummins 6LTAA8.9-C325
   239kw@2,200rpm

3. Mast  Length 12m
   Pull Capacity  9m
   Mast Dump  1.4m
   Drilling Angle 45°-90°
   Mast Dimension(W*H) 970X950mm

4. Drill Head
     Rotation Motor Rexroth,  A6VM160
   Torque Core Drilling 990Nm@1,180rpm
    1,850Nm@630rpm
    RC Drilling 11,400Nm@0-100rpm
   Drill Head Shift 2
   Drill Head Moving Inside of the mast
   lower thread 3.5" IF RH
   Stroke Length 7.32m
   Main Shaft spline shaft folat,  50mm, hollow Dia. 68mm
   Rotation Feed cylinder bore150mm，rod bore 75mm，cylinder-rope rate(2:1)
   Pull Out 16,000kg@48m/min
   Pull Down 8,000kg@36m/min
   Pull Speed 0.8m/s
   Fine Pull Speed 0.7m/min

5. Main Winch Position Set Mast Top
    Pulling Force& Speed 138KN@50m/min
85KN@80m/min

6. Wireline Winch Full Drum&Speed 5.5KN@380m/min
    Bare Drum&Speed 14KN@120m/min
    Rope Length 2,000m
    Rope Dia. φ6
    Rope Guide set

7. Rod Crane Lift Cylinder  set
    Oscillating  Cylinder  set
    Drill Pipe Winch  set

8. Foot Clamp φ44.5-φ177.8mm

9. Threads Break Cylinder Hydraulic Chain Wrench， 21,000NM

10. Walking Size(L*W*H, mm) 13,700x2,500x3,600

11. Option
   Mud Pump  Not set, fuction kept
   Safe-T-Spin  Not set, fuction kept
   Power Breakout  Not set, fuction kept
   Rod Handler  Not set, fuction kept
