1、Application:

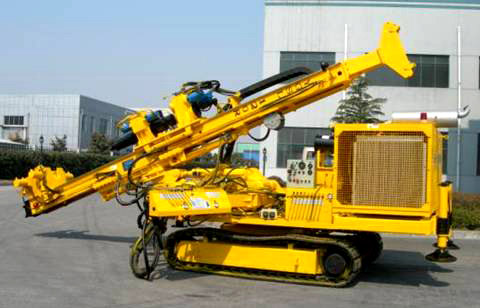

The Drilling Rig Model GS120C, which is a full hydraulic top drive double power head crawler drilling rig, can be applied for different kinds of drilling technique methods and a variety of ground conditions. Especially in the difficult work condition, such as the incompact ground area, the gravel place, and the fragment rock stratum, this drilling can always provide the operator excellent solutions.
GS120C Drilling Rig has already been widely used in boring not only the GSHPs hole and water well or water exploration hole; but also the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering, such as boreholes on side slopes of dams, railways, highways, etc.; pipe sheds drilling of the underground engineering; the grouting reinforcing hole drilling; the small foundation pile boreholes; and the drilling holes of landslide preventing and the treatment engineering of rock collapse.
2、Features:
a. Drilling Rig is installed the front and the rear power heads, which makes a variety of drilling methods possible. For example: single rotating drilling for inner or outer drilling tools itself; inner drilling tools rotating drilling, but the outer casing pipes reversing drilling; etc.

b. There are two levels (high speed or low speed) of rotary speed output. The rotary speed can be stepless adjusted in rating speed range of each level in order to be suitable for a variety of boring methods and techniques, such as rotary drilling, impact boring (Down-the-hole Hammer drilling), impact and rotary drilling, auger drilling and so on.

c. Drilling Rig has large rotational torque and long feeding stroke that make the borehole faster. Moreover, the accident treatment capability and the borehole efficiency are able to be enhanced.

d. The structure of the drilling rig is mounted on the whole crawler track chassis. Machine moving, hole position directing can be more convenient and faster that saves more assistant time of moving from one hole to another hole positions when drilling in one work area.

e. The hydraulic pumps, motors and operating valves are all selected from international famous products. Thus, the performance of the machine will be stable, creditable and long life.

f. Drilling Rig involves the hydraulic wrenching and clamping device (CLAMP), which makes clamping and loosening drilling tools’ connection easier, more convenient and dependable, and enormously reduces the assistant work of the operators during the drill work.

g. The whole structure adopts modular design. The Lineate Remote Moving Control Device and Safety Emergency Stop Switch can be installed as customer’s requests.

1. Borehole Depth (m):  150~80
2. Borehole Diameter (mm):  Ф100~195
3. Drill Rod Power Head Rotary Speed (Rotate/Reverse) (rpm):  5~35(Low); 5~70(High)
4. Drill Rod Power Head Maximum Output Torque (Nm):  6000
5. Casing Pipe Power Head Rotary Speed (Rotate/Reverse) (rpm):  10
6. Casing Pipe Power Head Maximum Output Torque (Nm):  12000
7. Feeding Stroke (mm):  3500
8. Lifting Capability (kN):  55
9. Thrust Force (kN):  35
10. Mast Compensating (mm):  850
11. Mast Swing Angle (°):  90 Left, 20 Right;  or 20 Left, 90 Right
12. Clamp Inner Diameter (mm):  200
13. Upper Platform Turning Range (°):  30 Right, 90 Left;  or 30 Left, 90 Right
14. Climb Ability (°):  20
15. Crawler Walking Speed (kM/h):  1.2
16. Engine Power (kW)(Diesel Engine):  125
17. Overall Dimension (Reduce Type) (mm):  About 7650x2250x3217
18. Total Weight (kg):  About 8500
19. Optional Equipments:
　　a) 1.1 Ton Hydraulic Winch / Tools Hoist
　　b) Mud Pump
　　c) Wet Mode Dust Cleaning Device
　　d) Lineate Remote Moving Control Device
　　e) Safety Emergency Stop Switch
