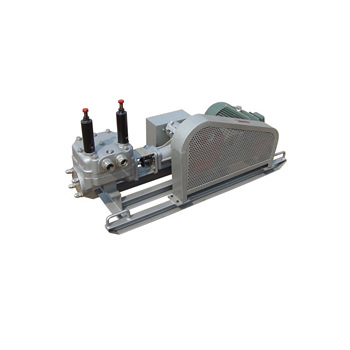

Single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump.
Features:
Single piston double-acting
Gear&vee belt transmission makes this pump high mechanical efficiency and working reliability
Integrated valve house and ball valve, together with compact structure
TECHNICAL Description
|
Rated output
|
60 L/min
|
|
Working Pressure
|
4MPa
|
|
Cycles
|
180/min
|
|
Cylinder Diameter
|
75mm
|
|
Stroke
|
85mm
|
|
Inlet hose
|
51mm
|
|
Outlet hose
|
42mm
|
|
Power Motor
|
5.5kw
|
|
Weight
|
210KG
|
|
Overall Dimension
|
1280x490x650mm
|
|
