| Hydraulic splitter |
| Product Pictures |
|
Main Features | |
Technical Description | |

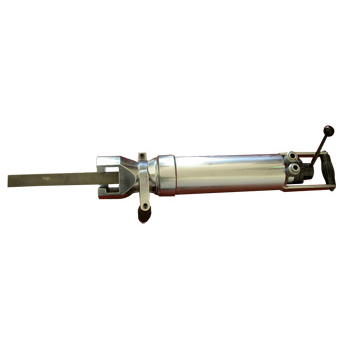

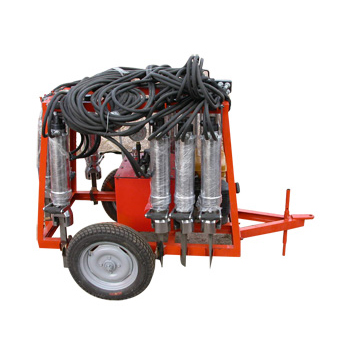

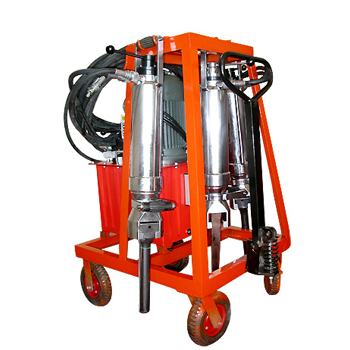

The hydraulic splitter is our newly developed product which is composed of two parts: hydraulic pump station and splitter. The super-high-pressure oil drives oil cylinder to generate gigantic power, which can split the object in the preset direction after mechanized amplification.
This products is mainly applicable to mining work of construction stones: the secondary breaking of large ores (metal and building parts).
Compared with traditional working mode, the above method features simple structure, convenient operation, efficient work and low price (some 1/4 of that of foreign products). It offers efficiency (double speed) and performance, and is more applicable to the secondary breaking of large ores. It is an ideal product to replace secondary blasting and manual breaking.
|
|
Technology Description
|
|
Model
|
Drilling diameter
(mm)
|
Counter wedge length (mm)
|
Drilling depth
(mm)
|
Theory splitting force(t)
|
Weight
(kg)
|
Length of split body(mm)
|
Splitting distance
(mm)
|
|
HS32 counter wedge and wedge are according to you choose
|
32-34
|
150
|
450
|
600
|
410
|
21
|
10-18
|
|
250
|
550
|
|
350
|
650
|
|
450
|
750
|
|
HS36 counter wedge and wedge are according to you choose
|
36-38
|
150
|
450
|
600
|
410
|
21
|
|
250
|
550
|
|
350
|
650
|
|
450
|
750
|
|
HS38 counter wedge and wedge are according to you choose
|
38-40
|
150
|
450
|
600
|
410
|
21
|
10-18
|
|
250
|
550
|
|
350
|
650
|
|
450
|
750
|
|
HS44 counter wedge and wedge are according to you choose
|
44-50
|
150
|
450
|
600
|
410
|
21
|
|
250
|
550
|
|
350
|
650
|
|
450
|
750
|
|
|
|
|   |
|
|
