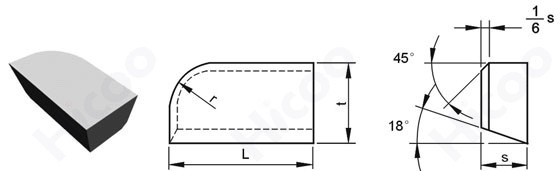

| 切削刀片---> 焊接刀片 HCB 型 |
| |
|
| |
型号 |
尺寸(mm)
|
L |
t |
s |
r |
HCB5 |
5.0 |
3.0 |
2.0 |
2.0 |
HCB6 |
6.0 |
4.0 |
2.5 |
2.5 |
HCB8 |
8.0 |
5.0 |
3.0 |
3.0 |
HCB10 |
10.0 |
6.0 |
4.0 |
4.0 |
HCB12 |
12.0 |
8.0 |
5.0 |
5.0 |
HCB16 |
16.0 |
10.0 |
6.0 |
6.0 |
HCB20 |
20.0 |
12.0 |
7.0 |
7.0 |
HCB25 |
25.0 |
14.0 |
8.0 |
8.0 |
HCB32 |
32.0 |
18.0 |
10.0 |
10.0 |
HCB40 |
40.0 |
22.0 |
12.0 |
12.0 |
HCB50 |
50.0 |
25.0 |
14.0 |
14.0 |
|
|
|
|
