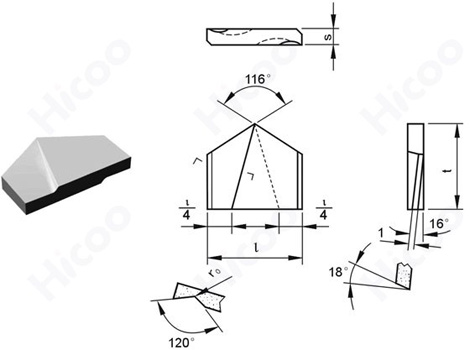

| 切削刀片---> 焊接刀片 HCE2 型 |
| 用于制造麻花钻和直槽钻 |
|
| |
型号 |
尺寸（毫米） |
近似单重（克） |
l |
t |
s |
r0 |
YG6 |
YG8 |
YT5 |
YT14 |
HCE210 |
10.8 |
9.0 |
2.0 |
1.0 |
2.1 |
2.0 |
1.8 |
1.6 |
HCE211 |
11.8 |
10.0 |
2.5 |
1.0 |
3.3 |
3.3 |
2.6 |
2.4 |
HCE213 |
13.0 |
11.0 |
2.5 |
1.0 |
3.3 |
3.8 |
3.3 |
3.0 |
HCE214 |
14.0 |
12.0 |
2.5 |
1.0 |
4.6 |
4.5 |
3.8 |
3.5 |
HCE215 |
15.0 |
13.0 |
2.5 |
1.0 |
5.2 |
5.1 |
4.4 |
4.0 |
HCE216 |
16.0 |
14.0 |
3.0 |
1.0 |
7.3 |
7.2 |
6.1 |
5.5 |
HCE217 |
17.0 |
15.0 |
3.0 |
1.5 |
8.2 |
8.1 |
6.9 |
6.3 |
HCE218 |
18.0 |
16.0 |
3.0 |
1.5 |
9.1 |
9.0 |
7.8 |
7.1 |
HCE219 |
19.0 |
17.0 |
3.0 |
1.5 |
10.3 |
10.2 |
8.7 |
7.9 |
HCE220 |
20.0 |
18.0 |
3.5 |
1.5 |
13.6 |
13.4 |
11.2 |
10.2 |
HCE221 |
21.0 |
18.0 |
3.5 |
1.5 |
14.3 |
14.1 |
11.7 |
10.7 |
HCE222 |
22.0 |
18.0 |
3.5 |
1.5 |
14.7 |
14.5 |
11.2 |
11.1 |
HCE223 |
23.0 |
18.0 |
4.0 |
1.5 |
17.7 |
17.5 |
14.5 |
13.2 |
HCE224 |
24.0 |
18.0 |
4.0 |
1.5 |
18.4 |
18.2 |
15.0 |
13.7 |
HCE225 |
25.0 |
22.0 |
4.5 |
2.0 |
26.2 |
25.7 |
19.8 |
18.0 |
HCE226 |
26.0 |
22.0 |
4.5 |
2.0 |
26.3 |
26.0 |
20.5 |
18.5 |
HCE227 |
27.5 |
22.0 |
4.5 |
2.0 |
29.5 |
29.2 |
21.5 |
19.5 |
HCE228 |
28.5 |
22.0 |
4.5 |
2.0 |
30.0 |
29.0 |
22.0 |
20.0 |
HCE229 |
29.5 |
24.0 |
5.0 |
2.0 |
38.5 |
37.5 |
28.0 |
25.5 |
HCE230 |
30.5 |
24.0 |
5.0 |
2.0 |
39.0 |
38.0 |
29.0 |
26.5 |
HCE231 |
31.5 |
24.0 |
5.0 |
2.0 |
40.0 |
39.0 |
29.5 |
27.0 |
HCE233 |
33.5 |
26.0 |
5.0 |
2.0 |
46.0 |
45.5 |
34.5 |
31.0 |
HCE236 |
36.5 |
26.0 |
5.0 |
2.0 |
50.0 |
49.0 |
37.0 |
33.5 |
HCE239 |
39.5 |
26.0 |
5.0 |
2.0 |
53.0 |
52.0 |
39.0 |
35.5 |
HCE242 |
42.0 |
28.0 |
6.0 |
2.0 |
72.5 |
71.0 |
54.0 |
49.5 |
HCE244 |
44.0 |
28.0 |
6.0 |
2.0 |
75.0 |
74.0 |
56.0 |
51.0 |
HCE247 |
47.0 |
28.0 |
6.0 |
2.0 |
78.0 |
77.0 |
59.0 |
54.0 |
HCE250 |
50.0 |
30.0 |
6.0 |
2.0 |
89.0 |
88.0 |
68.0 |
62.0 |
HCE252 |
52.0 |
30.0 |
6.0 |
2.0 |
91.0 |
90.0 |
82.5 |
73.2 |
|
|
|
|
