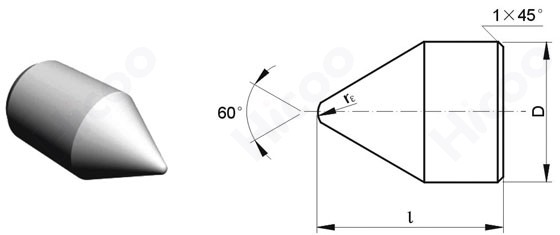

| 切削刀片---> 焊接刀片 HCF1 型 |
| 用于制造车床和外圆磨床的顶尖 |
|
| |
型号 |
尺寸（毫米） |
近似单重（克） |
D |
l |
rε |
YG6 |
YG8 |
YT5 |
YT14 |
HCF108 |
8.0 |
15.0 |
1.0 |
8.0 |
7.8 |
7.4 |
6.6 |
HCF112 |
12.0 |
20.0 |
1.5 |
22.5 |
22.0 |
19.4 |
17.2 |
HCF115 |
15.0 |
24.0 |
1.5 |
41.0 |
40.2 |
35.3 |
31.3 |
HCF118 |
18.0 |
28.0 |
2.0 |
68.5 |
67.1 |
58.9 |
52.3 |
HCF124 |
24.0 |
35.0 |
2.0 |
152.0 |
149.0 |
130.7 |
116.0 |
HCF130 |
30.0 |
40.0 |
2.5 |
255.0 |
250.0 |
219.3 |
194.7 |
HCF136 |
36.0 |
50.0 |
2.5 |
470.0 |
460.6 |
404.2 |
358.8 |
HCF140 |
40.0 |
60.0 |
3.0 |
760.0 |
744.8 |
653.6 |
580.1 |
|
|
|
|
