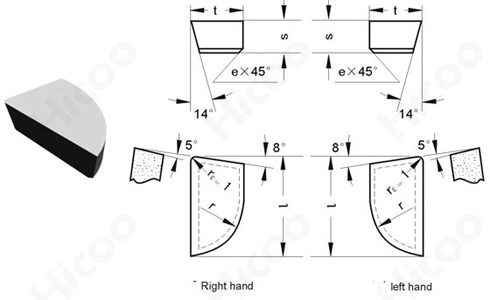

| 切削刀片---> 焊接刀片 HCA3 型 |
| 用于制造端面车刀和外圆车刀 |
|
| |
型号 |
尺寸（毫米） |
近似单重（克） |
右 |
左 |
l |
t |
s |
r |
e |
YG6 |
YG8 |
YT5 |
YT14 |
|
HCA310 |
/ |
10.0 |
6.0 |
3.0 |
6.0 |
/ |
2.4 |
2.3 |
2.0 |
1.8 |
HCA312 |
HCA312Z |
12.0 |
7.0 |
4.0 |
7.0 |
0.8 |
3.7 |
3.7 |
3.2 |
2.9 |
HCA315 |
HCA315Z |
15.0 |
9.0 |
6.0 |
9.0 |
0.8 |
9.3 |
9.1 |
7.6 |
7.1 |
HCA320 |
HCA320Z |
20.0 |
11.0 |
7.0 |
11.0 |
0.8 |
17.5 |
17.2 |
14.8 |
13.5 |
HCA325 |
HCA325Z |
25.0 |
14.0 |
8.0 |
14.0 |
0.8 |
32.0 |
31.5 |
27.0 |
25.0 |
HCA330 |
HCA330Z |
30.0 |
16.0 |
9.5 |
16.0 |
0.8 |
52.0 |
51.0 |
45.5 |
42.3 |
HCA340 |
HCA340Z |
40.0 |
18.0 |
10.5 |
18.0 |
1.2 |
89.2 |
87.5 |
80.0 |
74.5 |
|
|
|
|
