| 切削刀片---> 机夹刀片

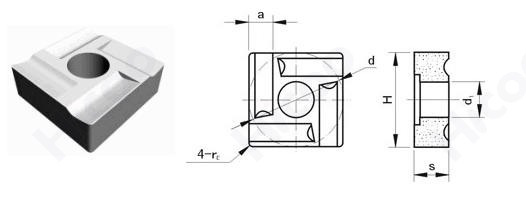

HC4A 型 |
|
| 制造左右偏内外圆及端面车刀 |
|
| |
| 型号 |
尺寸（毫米） |
近似单重（克） |
| d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
| HC41005A |
10.0 |
3.5 |
0.5 |
2.4 |
4.2 |
10.0 |
4.3 |
4.2 |
3.6 |
3.2 |
| HC41005AL |
| HC41305A |
13.0 |
4.5 |
0.5 |
3.4 |
5.2 |
13.0 |
9.6 |
9.4 |
7.9 |
7.0 |
| HC41305AL |
| HC41315A |
13.0 |
4.5 |
1.5 |
3.4 |
5.2 |
13.0 |
9.4 |
9.2 |
7.6 |
6.8 |
| HC41315AL |
| HC41605A |
16.0 |
5.5 |
0.5 |
4.4 |
6.2 |
16.0 |
17.4 |
17.2 |
15.0 |
13.3 |
| HC41605AL |
| HC41905A |
19.0 |
7.0 |
0.5 |
5.4 |
7.2 |
19.0 |
31.0 |
30.5 |
27.4 |
24.3 |
| HC41905AL |
|
|
|
|
