| 切削刀片---> 机夹刀片

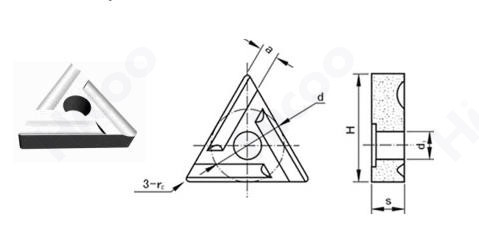

HC3A 型 |
|
| 用于制造左右偏外圆车刀、镋刀 |
|
| |
| 型号 |
尺寸（毫米） |
近似单重（克） |
| d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
HC31005A |
10.0 |
4.5 |
0.5 |
2.4 |
4.2 |
14.5 |
7.5 |
7.4 |
6.4 |
5.7 |
HC31005AL |
HC31305A |
13.0 |
5.5 |
0.5 |
3.4 |
5.2 |
19.0 |
15.7 |
15.5 |
13.4 |
11.9 |
HC31305AL |
HC31605A |
16.0 |
7.0 |
0.5 |
4.4 |
6.2 |
23.5 |
30.0 |
29.7 |
26.1 |
23.2 |
HC31605AL |
HC31905A |
19.0 |
8.5 |
0.5 |
5.4 |
7.2 |
28.0 |
52.0 |
51.0 |
44.6 |
39.6 |
|
|
|
|
