| 切削刀片---> 机夹刀片

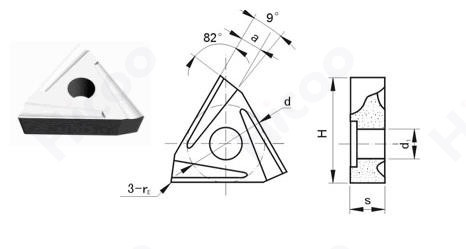

HC3D 型 |
|
| 用于制造左右偏外圆车刀、镋刀 |
|
| |
| 型号 |
尺寸（毫米） |
近似单重（克） |
| d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
HC31003D |
10.0 |
4.5 |
0.3 |
3.4 |
4.2 |
14.0 |
7.5 |
7.3 |
6.3 |
5.6 |
HC31003DL |
HC31303D |
13.0 |
5.5 |
0.3 |
4.4 |
5.2 |
18.2 |
15.3 |
15.0 |
13.2 |
11.7 |
HC31303DL |
HC31603D |
16.0 |
7.0 |
0.3 |
5.0 |
6.2 |
22.6 |
29.3 |
29.0 |
25.6 |
22.8 |
HC31603DL |
HC31905D |
19.0 |
8.5 |
0.5 |
5.7 |
7.2 |
26.0 |
48.5 |
48.0 |
43.4 |
38.6 |
HC31905DL |
|
|
|
|
