| 地质矿山工具---> 钎片

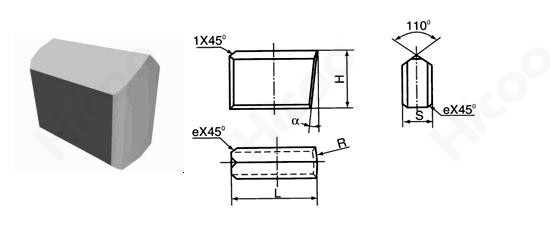

HCK20 型 |
|
|
单位：mm |
型号 |
尺
寸 |
L |
H |
S |
R |
α |
e |
HCK20-91002 |
10.0 |
13.0 |
8.0 |
20.0 |
2°30' |
1.0 |
HCK2012 |
12.0 |
12.0 |
16.0 |
3° |
HCK2013 |
13.0 |
HCK2014 |
14.0 |
17.0 |
HCK2015 |
15.0 |
20.0 |
HCK2016 |
16.0 |
14.0 |
HCK20-96501 |
16.5 |
22.0 |
13.0 |
26.0 |
HCK2017 |
17.0 |
14.0 |
8.0 |
20.0 |
HCK2019 |
19.0 |
22.0 |
HCK2020 |
20.0 |
16.0 |
10.0 |
23.0 |
1.5 |
HCK2022 |
22.0 |
25.0 |
HCK20-96502 |
23.0 |
23.0 |
13.0 |
32.5 |
1.0 |
HCK2024 |
24.0 |
16.0 |
10.0 |
27.0 |
1.5 |
HCK2026 |
26.0 |
29.0 |
HCK2028 |
28.0 |
31.0 |
HCK2030 |
30.0 |
12.0 |
35.0 |
HCK2032B |
32.0 |
16.0 |
10.0 |
31.0 |
1.0 |
HCK2032 |
18.0 |
12.0 |
38.0 |
2.0 |
HCK2035 |
35.0 |
20.0 |
15.0 |
45.0 |
HCK2041 |
41.0 |
22.0 |
17.0 |
51.0 |
HCK2045 |
45.0 |
25.0 |
19.0 |
57.5 |
HCK2053 |
53.0 |
20.0 |
59.0 |
|
|
|
|
