| 地质矿山工具---> 钎片

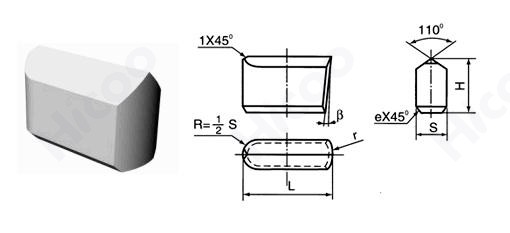

HCK21 型 |
|
|
单位：mm |
型号 |
尺
寸 |
L |
H |
S |
r |
β |
e |
HCK2114 |
14.0 |
12.0 |
8.0 |
20.0 |
3° |
1.0 |
HCK21-81001 |
15.0 |
14.0 |
2° |
HCK2116 |
16.0 |
12.0 |
22.0 |
3° |
HCK21-87003 |
17.0 |
18.0 |
12.0 |
20.0 |
2°30' |
1.5 |
HCK2118 |
18.0 |
14.0 |
10.0 |
22.5 |
3° |
1.0 |
HCK2120 |
20.0 |
18.0 |
28.5 |
HCK2126 |
26.0 |
16.0 |
35.0 |
1.5 |
HCK2128 |
28.0 |
HCK2130 |
30.0 |
12.0 |
38.0 |
HCK2132 |
32.0 |
44.5 |
2.0 |
HCK2135 |
35.0 |
51.0 |
HCK2139 |
39.0 |
18.0 |
14.0 |
57.5 |
HCK2143 |
43.0 |
20.0 |
63.5 |
|
|
|
|
