| 地质矿山工具---> 钎片

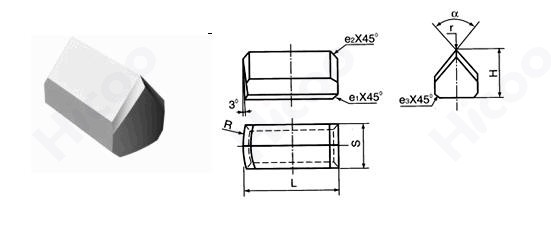

HCK23 型 |
|
|
单位：mm |
| 型号 |
尺
寸 |
| L |
H |
S |
R |
α |
γ |
e1 |
e2 |
e3 |
| HCK23-92001 |
11.0 |
6.5 |
7.8 |
19.1 |
80° |
0.8 |
0.4 |
0.8 |
0.8 |
| HCK23-85001 |
12.0 |
| HCK23-85002 |
13.5 |
| HCK23-85003 |
15.1 |
| HCK23-85004 |
16.7 |
14.3 |
7.7 |
70° |
| HCK23-85005 |
18.3 |
/ |
| HCK23-82001 |
28.5 |
22.0 |
13.0 |
31.0 |
110° |
/ |
/ |
2.0 |
0.5 |
| HCK23-84001 |
29.0 |
25.4 |
38.0 |
/ |
/ |
1.0 |
| HCK23-83001 |
34.7 |
22.0 |
45.0 |
/ |
/ |
1.5 |
| HCK23-84002 |
35.0 |
25.4 |
14.0 |
/ |
/ |
0.5 |
| HCK23-72001 |
42.0 |
20.0 |
12.0 |
50.0 |
70° |
0.2 |
1.5 |
1.5 |
|
|
|
|
