| 地质矿山工具---> 钻齿

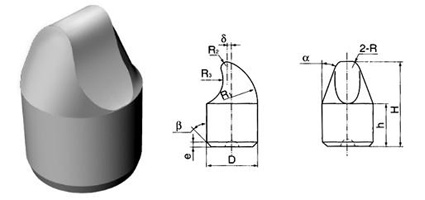

HCS-1 型(偏心勺形齿) |
|
|
| |
| 型号 |
尺寸 |
| D |
H |
R |
R1 |
R2 |
R3 |
h |
α |
β |
δ |
e |
| HCS1317-1 |
13.0 |
17.0 |
1.5 |
15.0 |
2.6 |
10.0 |
10.5 |
26° |
18° |
0.7 |
1.5 |
| HCS-97002 |
18.2 |
2.5 |
25.0 |
2.4 |
6.0 |
11.4 |
20° |
1.0 |
1.3 |
| HCS1421-1 |
14.0 |
21.5 |
1.5 |
20.0 |
20.0 |
11.5 |
1.1 |
1.8 |
| HCS-97001 |
15.0 |
20.0 |
3.0 |
30.0 |
2.2 |
10.0 |
11.3 |
20°30' |
1.3 |
| HCS1623-1 |
16.0 |
23.0 |
1.2 |
25.0 |
2.4 |
20.0 |
12.0 |
20° |
1.8 |
| HCS1623B-1 |
2.5 |
20.0 |
2.5 |
15.0 |
|
15° |
2.5 |
| HCS-98004 |
19.0 |
27.0 |
26.0 |
20.0 |
14.0 |
18° |
20° |
1.2 |
1.3 |
| HCS1931-1 |
31.0 |
3.0 |
20.0 |
18.0 |
16.3 |
15° |
18° |
2.2 |
1.4 |
| HCS-98005 |
20.0 |
32.0 |
2.5 |
27.0 |
25.0 |
17.0 |
20° |
1.3 |
1.3 |
|
|
|
|
