| 地质矿山工具---> 钻齿

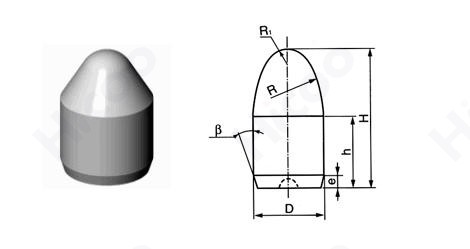

HCZ-1 型(球面锥形齿) |
|
|
单位：mm |
| 型号 |
尺寸 |
| D |
H |
h |
R |
R1 |
β |
e |
| HCZ0812-1 |
8.0 |
12.0 |
4.5 |
10.4 |
3.5 |
65° |
1.5 |
| HCZ1016-1 |
10.0 |
16.0 |
5.0 |
11.5 |
4.0 |
2.0 |
| HCZ1422-1 |
14.0 |
22.5 |
8.0 |
22.0 |
5.0 |
45° |
1.0 |
| HCZ1621-1 |
16.0 |
21.0 |
16.0 |
18° |
1.8 |
| HCZ1622-1 |
22.0 |
10.0 |
| HCZ1626-1 |
26.5 |
9.5 |
25.0 |
5.7 |
45° |
1.0 |
| HCZ1820-1 |
18.0 |
20.5 |
10.5 |
28.0 |
6.5 |
1.0 |
| HCZ1825-1 |
25.0 |
10.0 |
18° |
1.4 |
| HCZ1831-1 |
31.5 |
10.5 |
45° |
1.0 |
|
|
|
|
