| 地质矿山工具---> 钻齿

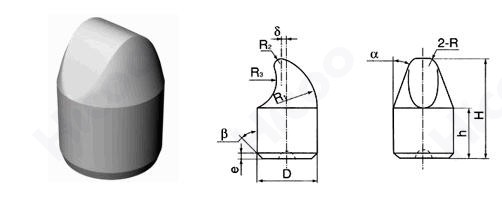

HCE 型(边楔齿) |
|
|
单位：mm |
| 型号 |
尺寸 |
| D |
H |
h |
R |
R1 |
α |
β |
γ |
e |
| HCE0811 |
8.0 |
11.0 |
7.5 |
1.8 |
1.5 |
90° |
18° |
15° |
1.2 |
| HCE-94001 |
111.5 |
6.5 |
2.0 |
62° |
20° |
1.3 |
| HCE1013 |
10.0 |
13.0 |
8.0 |
3.0 |
2.5 |
70° |
20° |
22°30' |
1.5 |
| HCE-96001 |
11.0 |
9.0 |
2.8 |
18° |
16°30' |
| HCE-96002 |
90° |
| HCE1115 |
15.0 |
8.0 |
65° |
20° |
| HCE1217 |
12.0 |
17.0 |
10.5 |
3.5 |
3.0 |
70° |
22°30' |
1.6 |
| HCE1520 |
15.0 |
20.0 |
12.0 |
3.0 |
3.0 |
80° |
1.8 |
| HCE1623A |
16.0 |
23.0 |
3.5 |
60° |
18° |
| HCE1721 |
17.0 |
21.0 |
13.0 |
4.0 |
80° |
22°30' |
2.2 |
| HCE1724 |
24.0 |
3.5 |
60° |
| HCE1929 |
19.0 |
29.0 |
17.0 |
4.0 |
3.0 |
15° |
| HCE2030 |
20.0 |
30.0 |
16.0 |
3.0 |
1.5 |
62° |
20° |
| HCE2235 |
22.0 |
35.0 |
19.0 |
3.5 |
2.5 |
60° |
13° |
| HCE2537 |
25.0 |
37.0 |
20.0 |
3.0 |
1.5 |
62°30' |
20° |
| HCE2539 |
39.0 |
60° |
|
|
|
|
