| 地质矿山工具---> 截煤齿

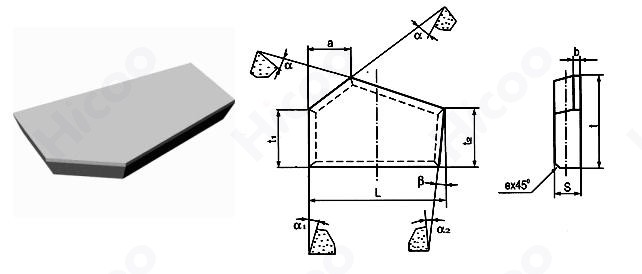

HCM14 型 |
|
| |
|
单位：mm |
| 型号 |
尺
寸 |
| L |
t |
S |
a |
t1 |
t2 |
α |
α1 |
α2 |
β |
b |
e |
| HCM1425 |
25.0 |
15.0 |
3.0 |
12.5 |
10.0 |
10.0 |
15° |
15° |
15° |
/ |
/ |
/ |
| HCM1427L |
27.5 |
22.0 |
4.5 |
12.0 |
11.0 |
15.0 |
10° |
5° |
/ |
2° |
/ |
/ |
| HCM1428R |
28.0 |
18.0 |
8.0 |
19.0 |
14.0 |
16.0 |
14° |
14° |
/ |
/ |
/ |
/ |
| HCM1443L |
43.0 |
21.0 |
18.0 |
12.0 |
10.0 |
8° |
/ |
/ |
/ |
/ |
1.0 |
| HCM14-77001 |
23.0 |
18.2 |
14.9 |
12° |
12° |
/ |
/ |
/ |
/ |
| HCM1445L |
45.0 |
27.0 |
9.0 |
15.0 |
18.0 |
18.0 |
10° |
10° |
/ |
/ |
/ |
1.0 |
| HCM1445LA |
22.5 |
/ |
/ |
/ |
| HCM1445R |
30.0 |
/ |
/ |
/ |
|
|
|
|
