| 耐磨零件-->>拉伸模

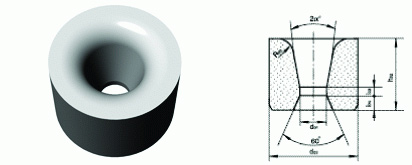

HCC 型 HCD 型 |
|
|
单位：mm |
| HCC型(黑色金属线材拉伸模) |
型号 |
基本尺寸 |
d02 |
h02 |
d01 |
l03 |
l04 |
R02 |
2αo |
HCC30- |
30.00 |
24.00 |
9.00~10.60 |
3.50 |
3.50 |
3.50 |
16 |
HCC35- |
35.00 |
11.60~13.60 |
HCC40- |
40.00 |
14.60~16.60 |
4.00 |
HCC45- |
45.00 |
25.00 |
17.50~21.50 |
4.50 |
4.00 |
HCC50- |
50.00 |
20.00~21.50 |
5.00 |
HCC55- |
55.00 |
27.00 |
22.50~24.50 |
5.00 |
4.50 |
18 |
HCC60- |
60.00 |
25.50~27.50 |
6.00 |
4.50~5.50 |
HCC65- |
65.00 |
28.50~30.50 |
5.50 |
HCC70- |
70.00 |
30.00 |
31.50~32.50 |
7.00 |
6.00 |
6.00 |
HCC75- |
75.00 |
33.50~36.50 |
HCC80- |
80.00 |
38.50~40.50 |
HCC85- |
85.00 |
33.00 |
42.00~44.00 |
7.50 |
6.50 |
7.00 |
20 |
HCC90- |
90.00 |
47.00 |
HCC100- |
100.00 |
35.00 |
51.00~57.00 |
8.50 |
7.00 |
|
| |
| HCD型(有色金属棒材拉伸模) 单位： mm |
型号 |
基本尺寸 |
d02 |
h02 |
d01 |
l03 |
l04 |
R02 |
2αo |
HCD30- |
30.00 |
24.00 |
9.60~11.60 |
3.00 |
3.50 |
4.00 |
18 |
HCD35- |
35.00 |
12.60~14.60 |
HCD40- |
40.00 |
15.60~18.60 |
3.50 |
HCD45- |
45.00 |
25.00 |
19.50~22.50 |
4.50 |
5.00 |
HCD50- |
50.00 |
23.50~25.50 |
4.00 |
HCD55- |
55.00 |
27.00 |
26.50~29.50 |
5.00 |
6.00 |
20 |
HCD60- |
60.00 |
30.50~32.50 |
5.00 |
HCD65- |
65.00 |
33.50~36.50 |
HCD70- |
70.00 |
30.00 |
38.50~40.50 |
5.50 |
5.50 |
7.00 |
22 |
HCD75- |
75.00 |
42.00~44.00 |
HCD80- |
80.00 |
46.00~48.00 |
6.00 |
HCD85- |
85.00 |
33.00 |
50.00~52.00 |
6.50 |
HCD90- |
90.00 |
54.00~56.00 |
6.50 |
HCD95- |
95.00 |
35.00 |
38.00~58.00 |
|
|
|
|
