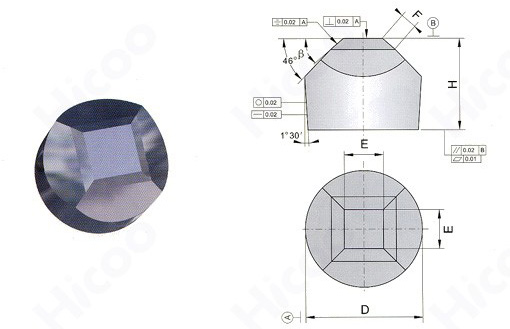

耐磨零件-->>顶锤和压钢-->>硬质合金六面顶顶锤(加工品)
单位：mm
系 列
型　号
尺寸　　
适用于
合成腔体
范围
D
E
H
F
β
Φ80
HCG6270-808-823-1
80.8-82.3
27.0
64.5±0.5
12.0
41°
Φ23
HCG6270-808-823-2
80.8-82.3
27.0
64.5±0.5
11.0
41°
HCG6275-808-823-1
80.8-82.3
27.5
64.5±0.5
12.0
41°
HCG6275-808-823-2
80.8-82.3
27.5
64.5±0.5
11.0
41°
Φ90
HCG6285-900-915
90.0-91.5
28.5
70.0±0.5
12.0
41°
Φ25
HCG6294-900-915
90.0-91.5
29.4
70.0±0.5
13.0
41°
HCG6295-900-915
90.0-91.5
29.5
70.0±0.5
12.0
41°
HCG6300-900-915
90.0-91.5
30.0
70.0±0.5
12.0
41°
Φ95
HCG6295-940-958
94.0-95.8
29.5
72.0±0.5
12.0
41°
Φ25
Φ103
HCG6325-103-105-1
103.0-105.0
32.5
76.0±0.5
12.5
41°
Φ28-Φ30
HCG6325-103-105-2
103.0-105.0
32.5
83.0±0.5
11.5
41°
HCG6325-103-103-3
103.0-105.0
32.5
77.0±0.5
12.5
41°
HCG6330-103-105-1
103.0-105.0
33.0
77.0±0.5
12.5
41°
HCG6335-103-105
103.0-105.0
33.5
77.0±0.5
12.5
41°
Φ109
HCG6385-1090-1110
109.0-111.0
38.5
80.0±0.5
13.0
41°
Φ32-Φ33
HCG6390-1090-1110
109.0-111.0
39.0
80.0±0.5
13.0
41°
Φ115
HCG6365-1150-1165
115.0-116.5
36.5
82.0±0.5
15.0
41°
Φ35
HCG6395-1150-1165
115.0-116.5
39.5
81.0±0.5
13.0
41°
HCG6400-1150-1165
115.0-116.5
40.0
82.5±0.5
13.0
41°
HCG6410-1150-1165
115.0-116.5
41.0
81.0±0.5
13.0
41°
Φ122
HCG6435-1220-1230
122.0-123.0
43.5
90.0±0.5
12.0
41°
Φ35-Φ37
Φ127
HCG644-1215-1225
121.5-122.5
44.0
85.0±0.5
13.0
41°
Φ38
HCG6435-1270-1280
127.0-128.0
43.5
93.0±0.5
12.0
41°
HCG6435-1270-1295-1
127.0-129.5
43.5
85.0±0.5
13.0
41°
HCG6435-1270-1295-2
127.0-129.5
43.5
93.0±0.5
13.5
41°
Φ148
HCG652
148.0-149.0
52
108
15
41°
Φ160
HCG656
160.0-161.0
56
117
15
41°
Φ165
HCG658
165.0-166.0
58
120.8
15
41°
Φ175
HCG662
175.0-176.0
62
128
15
41°
注：以上为推荐使用规格，可根据用户图样生产其他规格精加工产品。
