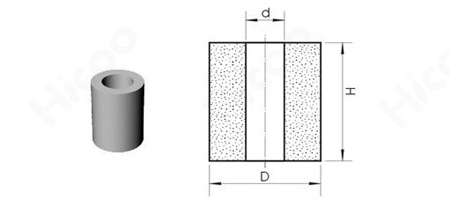

| 耐磨零件-->>冲压模-->>标准螺栓镦粗模毛坯 |
|
|
单位：mm |
| 型号 |
尺寸 |
| d |
D |
尺寸范围 |
HC0071012 |
0.7 |
10.0 |
10.0～15.0 |
HC0090810 |
0.9 |
8.00 |
10.0 |
HC0101020 |
1.0 |
10.0 |
20.0～40.0 |
HC0101320 |
1.0 |
13.0 |
20.0～40.0 |
HC0101520 |
1.0 |
15.0 |
20.0～40.0 |
HC0101820 |
1.0 |
18.0 |
20.0～45.0 |
HC0102230 |
1.0 |
22.0 |
30.0 |
HC0103020 |
1.0 |
30.0 |
20.0 |
HC0104030 |
1.0 |
40.0 |
30.0 |
HC0121025 |
1.2 |
10.0 |
25.0 |
HC0121320 |
1.2 |
13.0 |
20.0～40.0 |
HC0121855 |
1.2 |
18.0 |
55.0 |
HC0150508 |
1.5 |
5.0 |
8.0 |
HC0151020 |
1.5 |
10.0 |
20.0～35.0 |
HC0151115 |
1.5 |
11.0 |
15.0 |
HC0151220 |
1.5 |
12.0 |
20.0 |
HC0151310 |
1.5 |
13.0 |
10.0～40.0 |
HC0151430 |
1.5 |
14.0 |
30.0 |
HC0151520 |
1.5 |
15.0 |
20.0 |
HC0151620 |
1.5 |
16.0 |
20.0～50.0 |
HC0153015 |
1.5 |
30.0 |
15.0 |
HC0153415 |
1.5 |
34.0 |
15.0 |
HC0154520 |
1.5 |
45.0 |
20.0 |
HC0161010 |
1.6 |
10.0 |
10.0～20.0 |
HC0161215 |
1.6 |
12.0 |
15.0 |
HC0161820 |
1.6 |
18.0 |
20.0～55.0 |
HC0162150 |
1.6 |
21.0 |
50.0 |
|
| |
| 型号 |
尺寸 |
| d
|
D |
尺寸范围 |
HC0181020 |
1.8 |
10.0 |
20.0～35.0 |
HC0181215 |
1.8 |
12.0 |
15.0 |
HC0181320 |
1.8 |
13.0 |
20.0～50.0 |
HC0181620 |
1.8 |
16.0 |
20.0～40.0 |
HC0181825 |
1.8 |
18.0 |
25.0～45.0 |
HC0181951 |
1.8 |
19.0 |
51.0 |
HC0182130 |
1.8 |
21.0 |
30.0～40.0 |
HC0184645 |
1.8 |
46.0 |
45.0 |
HC0191625 |
1.9 |
16.0 |
25.0～55.0 |
HC0192035 |
1.9 |
20.0 |
35.0～50.0 |
HC0192250 |
1.9 |
22.0 |
50.0 |
HC0201520 |
2.0 |
15.0 |
20.0～45.0 |
HC0201925 |
2.0 |
19.0 |
25.0 |
HC0202030 |
2.0 |
20.0 |
30.0～40.0 |
HC0202220 |
2.0 |
22.0 |
20.0～40.0 |
HC0202260 |
2.0 |
22.0 |
60.0 |
HC0202525 |
2.0 |
25.0 |
25.0 |
HC0203030 |
2.0 |
30.0 |
30.0～60.0 |
HC0203530 |
2.0 |
35.0 |
30.0 |
HC0204035 |
2.0 |
40.0 |
35.0～60.0 |
HC0204545 |
2.0 |
45.0 |
45.0 |
HC0205060 |
2.0 |
50.0 |
60.0 |
HC0205550 |
2.0 |
55.0 |
50.0 |
HC0206060 |
2.0 |
60.0 |
60.0 |
HC0206560 |
2.0 |
65.0 |
60.0 |
HC0211020 |
2.1 |
10.0 |
20.0～35.0 |
HC0211115 |
2.1 |
11.0 |
15.0 |
|
|
|
|
