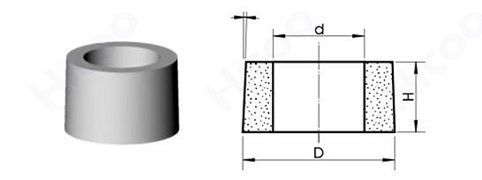

| 耐磨零件-->>冲压模-->>电池冲模毛坯(HCM-A型)
|
|
|
单位：mm |
| 型号 |
尺寸 |
| d |
D |
H |
HCX-96024 |
9.0 |
25.8 |
20.0 |
HCM-92001 |
10.0 |
64.6 |
35.6 |
HCM1253020A |
12.5 |
30.0 |
20.0 |
HCM-90003 |
12.5 |
30.0 |
20.0 |
HCM1283020A |
12.8 |
30.0 |
20.0 |
HCM-9004 |
12.8 |
30.0 |
20.0 |
HCM1293024AG |
12.9 |
30.0 |
24.5 |
HCM-75001 |
12.9 |
35.3 |
20.0 |
HCM-78001 |
13.0 |
24.5 |
20.0 |
HCM1353024A |
13.5 |
30.0 |
24.0 |
HCM-78003 |
17.0 |
28.5 |
24.5 |
HCM-81001 |
20.0 |
80.0 |
60.0 |
HCM2384020A |
23.8 |
40.0 |
20.0 |
HCM-90005 |
23.8 |
40.0 |
20.0 |
HCM-78002 |
24.0 |
39.0 |
32.0 |
HCM-78004 |
26.0 |
41.0 |
40.0 |
HCM3054820A |
30.5 |
48.0 |
20.0 |
HCM-90006 |
30.5 |
48.0 |
20.0 |
HCM3084720A |
30.8 |
47.0 |
20.0 |
HCM3125028A |
31.2 |
50.0 |
28.0 |
HCM3134620AG |
31.3 |
46.8 |
20.0 |
HCM-93002 |
31.4 |
48.0 |
20.0 |
HCM3144918A |
31.4 |
49.0 |
18.0 |
HCM3184720A |
31.8 |
47.0 |
20.0 |
HCM3194914A |
31.9 |
49.4 |
14.5 |
HCM3195028AG |
31.9 |
50.4 |
28.5 |
HCM3224820A |
32.2 |
48.0 |
20.0 |
HCM-90007 |
32.2 |
48.0 |
20.0 |
HCM-93003 |
32.2 |
48.0 |
20.0 |
|
|
|
|
