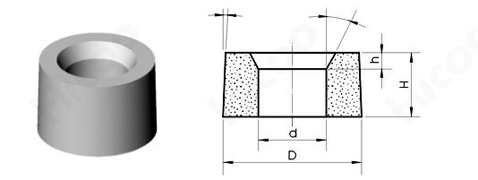

电池冲模毛坯（HCM-HC型） |
|
|
单位：mm |
型号 |
尺寸 |
d |
D |
H |
α |
β |
h |
HCM0412120 |
4.1 |
21.0 |
20.0 |
30o |
45o |
1.0 |
HCM0612120 |
6.2 |
21.0 |
20.0 |
/ |
45o |
1.0 |
HCM0822120 |
8.3 |
21.0 |
20.0 |
/ |
45o |
1.0 |
HCM-88001 |
12.5 |
30.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM-88006 |
12.7 |
30.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM-88002 |
12.8 |
30.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM1303018B |
13.0 |
30.0 |
18.0 |
1o30' |
45o |
1.0 |
HCM-88007 |
13.0 |
30.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM2253818B |
22.5 |
38.5 |
18.0 |
1o30' |
45o |
1.5 |
HCM2294524B |
23.0 |
45.0 |
24.0 |
/ |
7o30' |
0.5 |
HCM2354014B |
23.5 |
40.0 |
14.0 |
/ |
5o |
2.5 |
HCM2354018B |
23.5 |
40.0 |
18.0 |
/ |
5o |
1.5 |
HCM-88003 |
23.8 |
40.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM-88008 |
24.0 |
40.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM2434524B |
24.3 |
45.0 |
24.0 |
/ |
7o30' |
0.5 |
HCX-97019 |
24.5 |
37.5 |
58.2 |
1o |
45o |
1.5 |
HCM-88004 |
30.5 |
48.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM-88009 |
30.7 |
48.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM3084718B |
30.8 |
47.0 |
18.0 |
1o30' |
45o |
1.5 |
HCM3144918B |
31.4 |
49.0 |
18.0 |
/ |
5o |
1.5 |
HCM3145014B |
31.4 |
50.0 |
14.0 |
/ |
5o |
2.5 |
HCX-97020 |
31.5 |
45.5 |
36.2 |
1o |
45o |
1.5 |
HCM88005 |
32.2 |
48.0 |
20.0 |
1o30' |
10o |
2.5 |
HCM88010 |
32.4 |
48.0 |
20.0 |
1o30' |
10o |
2.5 |
|
|
|
|
