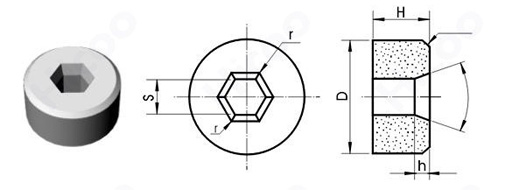

耐磨零件-->>冲压模-->> 六方螺母模毛坯
单位：mm
型号
尺寸
S
D
H
h
e
α
r
HCF0922509AG
9.2
25.5
9.0
1.5
1.5
60o
0.5
HCF-91005
11.0
30.5
8.5
1.0
1.0
90o
0.2
HCF1162509AG
11.7
25.5
9.0
1.5
1.0
80o
0.4
HCF1193011AG
12.0
30.5
11.2
1.5
1.0
60o
0.4
HCF-91001
12.2
30.5
10.5
1.0
1.0
90o
0.2
HCF1303011AG
13.0
30.5
11.2
1.0
1.0
60o
0.4
HCF1343012AG
13.4
30.5
12.2
1.0
1.0
60o
0.4
HCF-91006
14.0
35.5
11.3
1.5
1.0
90o
0.2
HCF-91002
15.2
35.5
12.5
1.5
1.0
90o
0.2
HCF1623511AG
16.2
35.5
11.8
1.5
1.5
60o
0.5
HCF1723412AG
17.2
34.5
12.5
1.5
1.5
80o
0.4
HCF-91003
17.2
34.5
16.0
1.5
1.0
90o
0.2
HCF1773414AG
17.7
34.5
14.5
1.5
1.0
80o
0.4
HCF1783917AG
17.8
39.0
17.0
2.0
/
60o
0.5
HCF1784315AG
17.9
43.5
15.2
1.5
1.0
60o
0.4
HCF1803917A
18.0
39.0
17.0
2.0
/
60o
0.5
HCF1834316AG
18.4
43.5
16.2
1.5
1.0
60o
0.4
HCF-91008
19.9
46.5
17.2
1.5
1.0
90o
0.2
HCF-91004
20.2
46.5
18.2
1.5
1.0
90o
0.2
HCF2084646AG
20.9
46.5
16.2
1.5
1.0
60o
0.4
HCF2134617AG
21.4
46.5
17.2
1.5
1.0
60o
0.4
HCF2275018AG
22.8
50.5
18.2
1.5
1.0
60o
0.4
HCF2305019AG
23.1
50.5
19.2
1.5
1.0
60o
0.4
HCF2575520AG
25.8
55.5
20.3
1.5
1.0
60o
0.4
HCF2605521AG
26.1
55.5
21.2
1.5
1.0
60o
0.4
HCF-86017
28.6
60.5
23.0
2.0
2.0
30o
0.5
HCF-86016
29.1
60.5
23.0
2.0
2.0
30o
0.5
HCF3006025AG
30.0
60.5
25.0
3.0
1.5
80o
0.4
HCF3086025AG
30.8
60.5
25.0
3.0
2.0
80o
0.4
HCF3126027AG
31.2
60.5
27.5
3.0
2.5
80o
0.4
HCF3126029AG
31.2
60.5
29.0
2.0
2.0
60o
0.5
HCF3156025AG
31.5
60.5
25.0
2.0
2.0
60o
0.5
HCF3316525AG
33.2
65.5
25.0
3.0
2.5
80o
0.4
HCF3406525AG
34.0
65.5
25.0
3.0
2.5
80o
0.4
HCF3427031AG
34.2
70.5
31.0
2.0
2.0
30o
0.5
HCF3466527AG
34.6
65.5
27.5
3.0
2.5
80o
0.4
HCF3497031AG
34.9
70.5
31.0
2.0
2.0
30o
0.5
