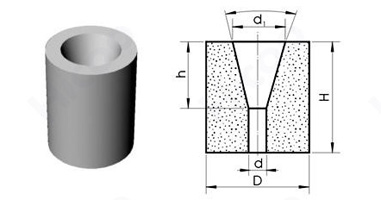

| 耐磨零件-->>冲压模-->>落料模(割模)毛坯 |
|
|
单位：mm |
型号 |
尺寸 |
d |
D |
H |
α |
d1 |
h |
HCG-82001 |
2.3 |
8.0 |
12.0 |
25o |
/ |
6.0 |
HCG-82002 |
2.8 |
8.0 |
12.0 |
25o |
/ |
6.0 |
HCS-76005 |
3.7 |
13.0 |
15.0 |
31o |
7.0 |
/ |
HCG-82003 |
4.2 |
10.0 |
14.0 |
25o |
/ |
7.0 |
HCX-74019 |
5.4 |
14.0 |
20.3 |
15o |
/ |
12.3 |
HCX-86001 |
6.5 |
30.0 |
18.0 |
20o |
/ |
7.5 |
HCX-86002 |
7.5 |
30.0 |
18.0 |
20o |
/ |
7.5 |
HCS-90006 |
8.2 |
16.0 |
14.0 |
30o |
14.0 |
/ |
HCX-86003 |
8.5 |
30.0 |
18.0 |
20o |
/ |
7.5 |
HCG0902025 |
9.0 |
20.0 |
25.0 |
30o |
/ |
16.0 |
HCX-86004 |
10.0 |
30.0 |
18.0 |
20o |
/ |
7.5 |
HCG1302530 |
13.0 |
25.0 |
30.0 |
30o |
/ |
20.0 |
HCG 1603035 |
16.0 |
30.0 |
35.0 |
30o |
/ |
22.0 |
HCX-92031 |
17.0 |
40.0 |
27.0 |
30o |
/ |
16.0 |
HCG1753540 |
17.5 |
35.0 |
40.0 |
30o |
/ |
25.0 |
HCX-92032 |
20.0 |
49.0 |
34.0 |
30o |
/ |
23.0 |
HCG2053540 |
20.5 |
35.0 |
40.0 |
30o |
/ |
25.0 |
HCG2254545 |
22.5 |
45.0 |
45.0 |
30o |
/ |
25.0 |
HCX-92033 |
25.0 |
49.0 |
34.0 |
30o |
/ |
23.0 |
HCG2554545 |
25.5 |
45.0 |
45.0 |
30o |
/ |
25.0 |
HCX-92034 |
30.0 |
58.0 |
37.0 |
30o |
/ |
26.0 |
HCG3406560 |
34.0 |
65.0 |
60.0 |
30o |
/ |
30.0 |
HCG3807060 |
38.0 |
70.0 |
60.0 |
30o |
/ |
30.0 |
HCG4057560 |
40.5 |
75.0 |
60.0 |
30o |
/ |
30.0 |
|
|
|
|
