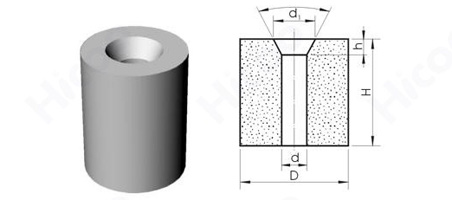

| 耐磨零件-->>冲压模-->>圆型缩杆模毛坯 |
|
|
单位：mm |
| 型号 |
尺寸 |
| d |
D |
H |
d1 |
h |
α |
HCS0201015 |
2.0 |
10.0 |
15.0 |
4.0 |
/ |
30o |
HCX-76039 |
2.1 |
12.0 |
15.0 |
2.8 |
/ |
40o |
HCS0301015 |
3.0 |
10.0 |
15.0 |
5.0 |
/ |
30o |
HCS-87003 |
3.0 |
13.0 |
18.0 |
6.0 |
/ |
30o |
HCG-80010 |
3.6 |
11.5 |
20.0 |
6.5 |
/ |
30o |
HCG-80011 |
3.6 |
12.0 |
20.0 |
6.5 |
/ |
30o |
HCS0372613 |
3.7 |
26.0 |
13.0 |
4.6 |
/ |
20o |
HCS0401015 |
4.0 |
10.0 |
15.0 |
6.5 |
/ |
30o |
HCS0421210 |
4.2 |
12.0 |
10.0 |
5.5 |
/ |
22o |
HCS0452010 |
4.5 |
20.0 |
10.0 |
6.2 |
/ |
24o |
HCS0452613 |
4.6 |
26.0 |
13.0 |
5.8 |
/ |
20o |
HCC-82004 |
5.2 |
14.0 |
16.0 |
/ |
5.0 |
25o |
HCX-76036 |
5.5 |
14.0 |
21.0 |
/ |
6.0 |
41o |
HCS0652010 |
6.5 |
20.0 |
10.0 |
8.2 |
/ |
24o |
HCS0652613 |
6.5 |
26.0 |
13.0 |
7.8 |
/ |
20o |
HCS0652725 |
6.5 |
27.0 |
25.0 |
10.0 |
/ |
30o |
HCX-73019 |
6.7 |
30.0 |
31.0 |
/ |
1.3 |
10o |
HCX-73014 |
6.7 |
30.0 |
41.0 |
/ |
1.3 |
10o |
HCC-82005 |
6.9 |
18.0 |
16.0 |
/ |
5.0 |
25o |
HCC-82006 |
8.0 |
18.0 |
16.0 |
/ |
5.0 |
25o |
HCS0803010 |
8.0 |
30.0 |
10.0 |
9.7 |
/ |
24o |
HCS-90004 |
8.2 |
14.0 |
16.0 |
12.0 |
/ |
40o |
HCX78008 |
8.3 |
16.0 |
9.0 |
9.8 |
2.4 |
/ |
HCS0852725 |
8.5 |
27.0 |
25.0 |
13.0 |
/ |
30o |
HCX-73020 |
8.5 |
30.0 |
37.0 |
/ |
1.5 |
10o |
HCX-73005 |
8.9 |
30.0 |
21.0 |
/ |
8.0 |
18o |
HCC-82007 |
10.0 |
27.0 |
22.0 |
/ |
5.0 |
25o |
HCS1003014 |
10.0 |
30.0 |
14.0 |
11.7 |
/ |
24o |
HCS1003621 |
10.0 |
36.0 |
21.0 |
11.6 |
/ |
20o |
HCS-88007 |
10.0 |
36.0 |
21.0 |
11.6 |
/ |
20o |
HCX-73021 |
10.3 |
30.0 |
42.0 |
/ |
1.8 |
10o |
HCX-73016 |
10.3 |
30.0 |
51.0 |
/ |
1.8 |
10o |
HCS1052735 |
10.5 |
27.0 |
35.0 |
15.5 |
/ |
30o |
HCX-73006 |
10.7 |
30.0 |
21.0 |
/ |
8.8 |
18o |
HCS-90003 |
11.0 |
29.5 |
12.0 |
13.0 |
4.0 |
/ |
HCS1203514 |
12.0 |
35.0 |
14.0 |
13.7 |
/ |
24o |
HCX-73022 |
12.2 |
40.0 |
47.0 |
/ |
2.1 |
10o |
HCX-73017 |
12.2 |
40.0 |
56.0 |
/ |
2.1 |
10o |
HCS1383621 |
13.8 |
36.0 |
21.0 |
15.6 |
/ |
20o |
HCS1404014 |
14.0 |
40.0 |
14.0 |
15.7 |
/ |
24o |
HCX-73023 |
14.2 |
40.0 |
52.0 |
/ |
2.1 |
10o |
HCS1453235 |
14.5 |
32.0 |
35.0 |
19.5 |
/ |
30o |
HCX-73007 |
14.5 |
35.0 |
25.0 |
/ |
11.0 |
18o |
HCX-96023 |
15.4 |
31.5 |
19.0 |
/ |
1.0 |
50o |
HCS1554020 |
15.5 |
40.0 |
20.0 |
17.6 |
/ |
24o |
HCS1754520 |
17.5 |
45.0 |
20.0 |
19.6 |
/ |
24o |
HCX-73008 |
18.2 |
35.0 |
25.0 |
/ |
11.0 |
18o |
HCX-96022 |
18.4 |
31.5 |
19.0 |
/ |
1.0 |
50o |
HCX-76019 |
19.0 |
45.0 |
35.0 |
/ |
5.0 |
2o |
HCS1954520 |
19.5 |
45.0 |
20.0 |
21.6 |
/ |
24o |
HCX-73009 |
20.2 |
50.0 |
25.0 |
/ |
11.0 |
18o |
HCS2105020 |
21.0 |
50.0 |
20.0 |
23.1 |
/ |
24o |
HCS2405025 |
24.0 |
50.0 |
25.0 |
26.1 |
/ |
24o |
HCS2656025 |
26.5 |
60.0 |
25.0 |
28.6 |
/ |
24o |
HCX-76020 |
27.0 |
60.0 |
30.0 |
/ |
10.0 |
3o |
HCS3207025 |
32.0 |
70.0 |
25.0 |
34.1 |
/ |
24o |
|
|
|
|
