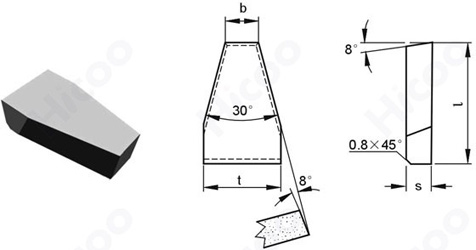

| Cutting Tools--->> Brazed Tips HCC2 |
|
|
|
Type |
Dimension(mm) |
Approx unit weight(g) |
l |
t |
b |
s |
YG6 |
YG8 |
YT5 |
YT14 |
HCC215 |
15.0 |
7.0 |
1.8 |
4.0 |
4.3 |
4.3 |
3.6 |
3.3 |
HCC218 |
18.0 |
10.0 |
3.1 |
5.0 |
9.3 |
9.1 |
7.9 |
7.3 |
HCC223 |
23.0 |
14.0 |
4.9 |
5.0 |
17.3 |
17.0 |
15.0 |
13.9 |
HCC228 |
28.0 |
18.0 |
7.7 |
6.0 |
34.4 |
33.8 |
29.5 |
27.4 |
HCC236 |
36.0 |
28.0 |
13.1 |
7.0 |
79.4 |
78.0 |
67.5 |
62.6 |
|
|
|
|
