| Cutting Tools--->> Brazed Tips HCE4 |
|
|
|
Type |

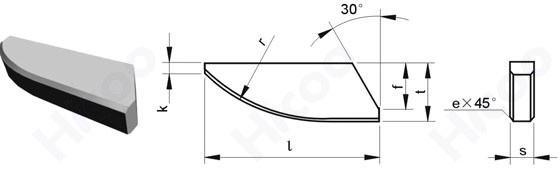

Dimension(mm) |
Approx unit weight(g) |
l |
t |
s |
f |
r |
k |
e |
YG6 |
YG8 |
YT5 |
YT14 |
HCE415 |
15.0 |
4.0 |
2.0 |
2.5 |
15.0 |
1.5 |
/ |
1.4 |
1.4 |
1.2 |
1.1 |
HCE418 |
18.0 |
5.0 |
2.5 |
3.5 |
20.0 |
1.5 |
0.5 |
2.9 |
2.8 |
2.2 |
2.0 |
HCE420 |
20.0 |
6.0 |
3.0 |
5.0 |
25.0 |
1.5 |
0.5 |
4.1 |
4.0 |
3.4 |
3.0 |
HCE425 |
25.0 |
8.0 |
3.5 |
6.0 |
25.0 |
2.0 |
0.5 |
8.0 |
7.9 |
7.0 |
6.2 |
HCE430 |
30.0 |
10.0 |
4.0 |
8.0 |
30.0 |
2.0 |
0.5 |
13.1 |
12.9 |
11.4 |
10.3 |
|
|
|
|
