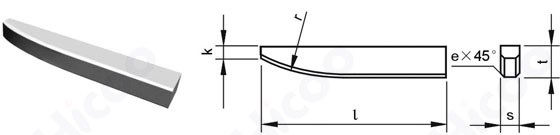

| Cutting Tools--->> Brazed Tips HCE5 |
|
|
|
Type |
Dimension(mm) |
Approx unit weight(g) |
l |
t |
s |
r |
k |
e |
YG6 |
YG8 |
YT5 |
YT14 |
HCE515 |
15.0 |
2.5 |
1.3 |
20.0 |
1.5 |
/ |
0.7 |
0.7 |
0.6 |
0.6 |
HCE518 |
18.0 |
3.0 |
1.5 |
25.0 |
1.5 |
/ |
1.2 |
1.2 |
0.9 |
0.8 |
HCE522 |
22.0 |
3.5 |
2.0 |
25.0 |
1.5 |
/ |
2.0 |
2.0 |
1.6 |
1.5 |
HCE525 |
25.0 |
4.0 |
2.5 |
30.0 |
2.0 |
/ |
3.4 |
3.3 |
2.8 |
2.6 |
HCE530 |
30.0 |
5.0 |
3.0 |
30.0 |
2.0 |
0.5 |
6.0 |
5.9 |
5.1 |
4.6 |
HCE540 |
40.0 |
6.0 |
3.5 |
30.0 |
2.0 |
0.5 |
11.7 |
11.5 |
9.5 |
8.8 |
|
|
|
|
