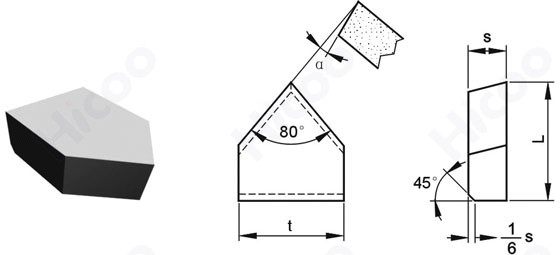

| Cutting Tools--->> Brazed Tips HCE |
|
|
|
Type |
Dimension (mm) |
L |
t |
s |
α |
HCE4 |
10.0 |
4.0 |
2.5 |
/ |
HCE5 |
12.0 |
5.0 |
3.0 |
/ |
HCE6 |
14.0 |
6.0 |
3.5 |
/ |
HCE8 |
16.0 |
8.0 |
4.0 |
9＜ |
HCE10 |
18.0 |
10.0 |
5.0 |
9＜ |
HCE12 |
20.0 |
12.0 |
6.0 |
9＜ |
HCE16 |
22.0 |
16.0 |
7.0 |
9＜ |
HCE20 |
25.0 |
20.0 |
8.0 |
9＜ |
HCE25 |
28.0 |
25.0 |
9.0 |
9＜ |
HCE32 |
32.0 |
32.0 |
10.0 |
9＜ |
|
|
|
|
